MDR AI Cameras
Prevent incidents by providing alerts against potential driver error scenarios.
- Home
- »
- Driver Safety Systems
- »
- MDR AI Cameras
Mobile Digital Recorder
The Ultimate Incident Prevention Kit
Compatible with Brigade’s MDR 600 Series and AI Connected Dashcams, the AI-powered Forward-Facing and Driver-Facing are designed to prevent incidents by providing alerts against potential driver error scenarios. In case of an incident, the MDR or Dashcam will immediately generate an alert and send this to an in-cab monitor via the A/V out connector.
MDR AI Cameras
AI

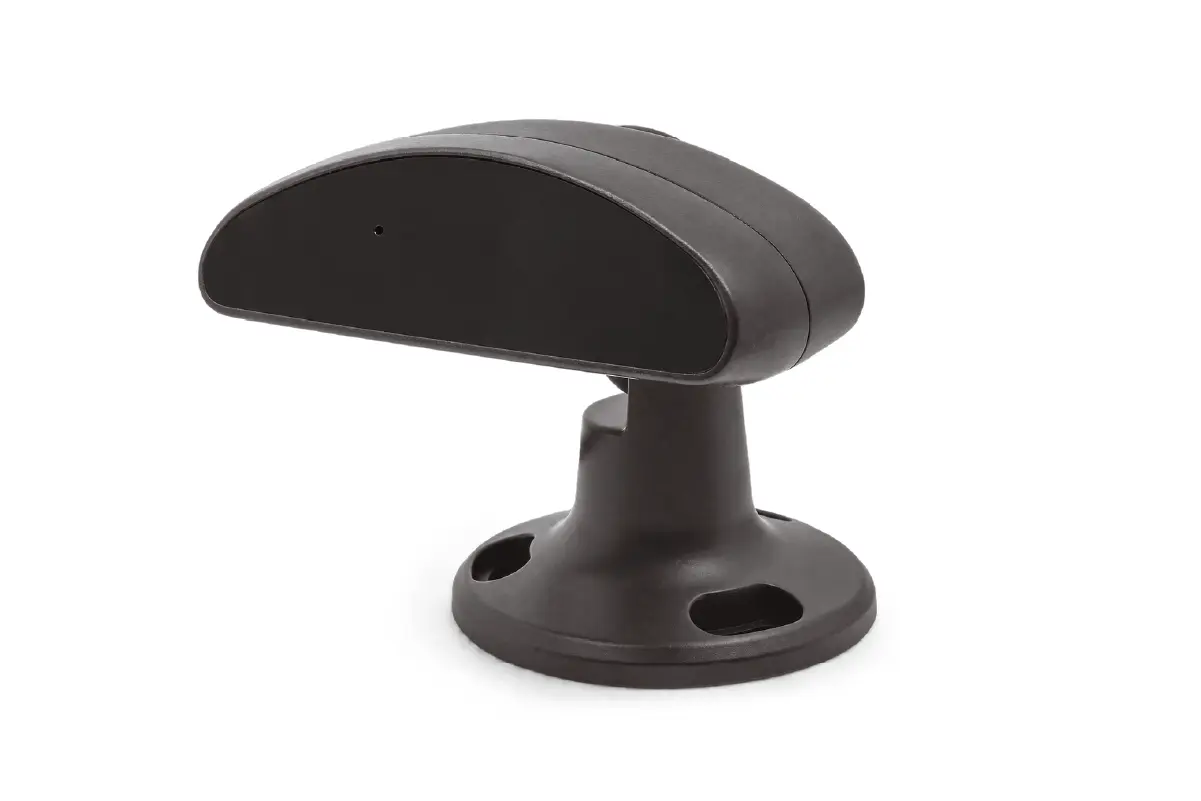

Driver-Facing AI Camera
Model |
Part Number |
| IP-DFC-AI-AP-01: A-Pillar Mount | 8089 |
| IP-DFC-AI-DB-01: Dashboard Mount | 8088 |
| IP-DFC-AI-WS-01: Windscreen Mount | 8029 |
Viewing angle (HxVxD)
71 x 42 x 82°
Size (WxHxD) with bracket
IP-DFC-AI-DB-01: 98 x 88 x 95mm
IP-DFC-AI-WS-01: 98 x 129 x 39mm
IP Rating
IP50
Warranty
3 years
Features
- Full HD driver facing camera
- AI continuously monitors the driver’s movements
- 2-stage customisable audible alerts: Real-speech (in English) or high-pitched beep
- Driver alerts include:
– Driver fatigue
– Yawning
– Driver distraction
– Using a handheld device
– Smoking - Built-in infrared (IR) technology for low light conditions
- Effective through glasses/sunglasses
- Focal length calibrated to capture the driver only
- Microphone
- Auto-calibration
- Auto image orientation
- Smartcontroller App
- Built-in G-sensor
- Ethernet connection
- Connects directly to MDR: Compatible with MDR-644, MDR 641* and AI Connected Dashcam
- Picture Elements: 1280(H) x 800(V)
- Imaging device: CMOS
*The MDR-641 has only one IP channel, so camera cannot be connected alongside further IP AI/IP Cameras.
Camera mounts
 |
 |
 |
| A-pillar mount | Dashboard mount | Windscreen mount |
Power
- Current: 0.18 Amps @ 12V
Durability & Standards
- Mechanical vibration: 3.1G
- Mechanical shock: 51G
- Operating temperature: -40 to +70°C
- Video output signal: H.264 or H.265
- Network protocol: TCP/IP, HTTP, DHCP, RTSP, NTP, FTP
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
AI

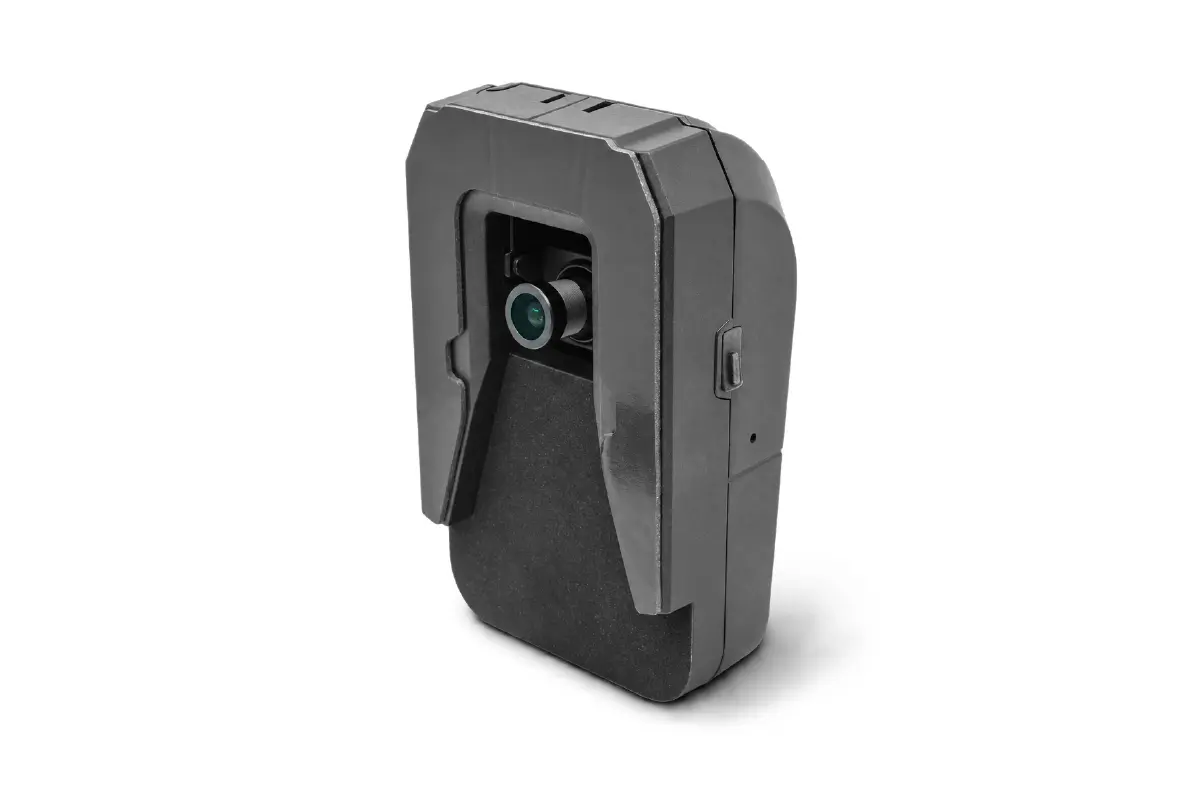

Forward-Facing Internal Camera
Model |
Part Number |
| IP-FFC-AI-01 | 8027 |
Viewing angle (HxVxD)
53 x 3 x 61°
Size (WxHxD)
78 x 126 x 49mm
IP Rating
IP30
Warranty
3 years
Features
- Full HD forward facing camera
- Audible driver alerts
- Driver alerts include:
– Forward Collision Warning (FCW)
– Headway Monitoring Warning (HMW)
– Lane Departure Warning (LDW) - Adjustable lens angle
- Microphone
- Speaker
- Auto-calibration
- Ethernet connection
- Connects directly to MDR: Compatible with MDR-644 and MDR-641*
- Picture Elements: 2688(H) x 1520(V)
- Imaging device: CMOS
*The MDR-641 has only one IP channel, so camera can not be connected alongside further IP AI/IP Cameras.
Power
- Current: 0.28 Amps @ 12V
Durability & Standards
- Mechanical vibration: 6G
- Mechanical shock: 51G
- Operating temperature: -40 to +70°C
- Video output signal: H.264 or H.265
- Network protocol: TCP/IP, HTTP, DHCP, NTP, FTP, UDP, DNS, IPv4
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
Product Data
| Model | Product Data |
| IP-FFC-AI-01 (8027) | View data |
AI

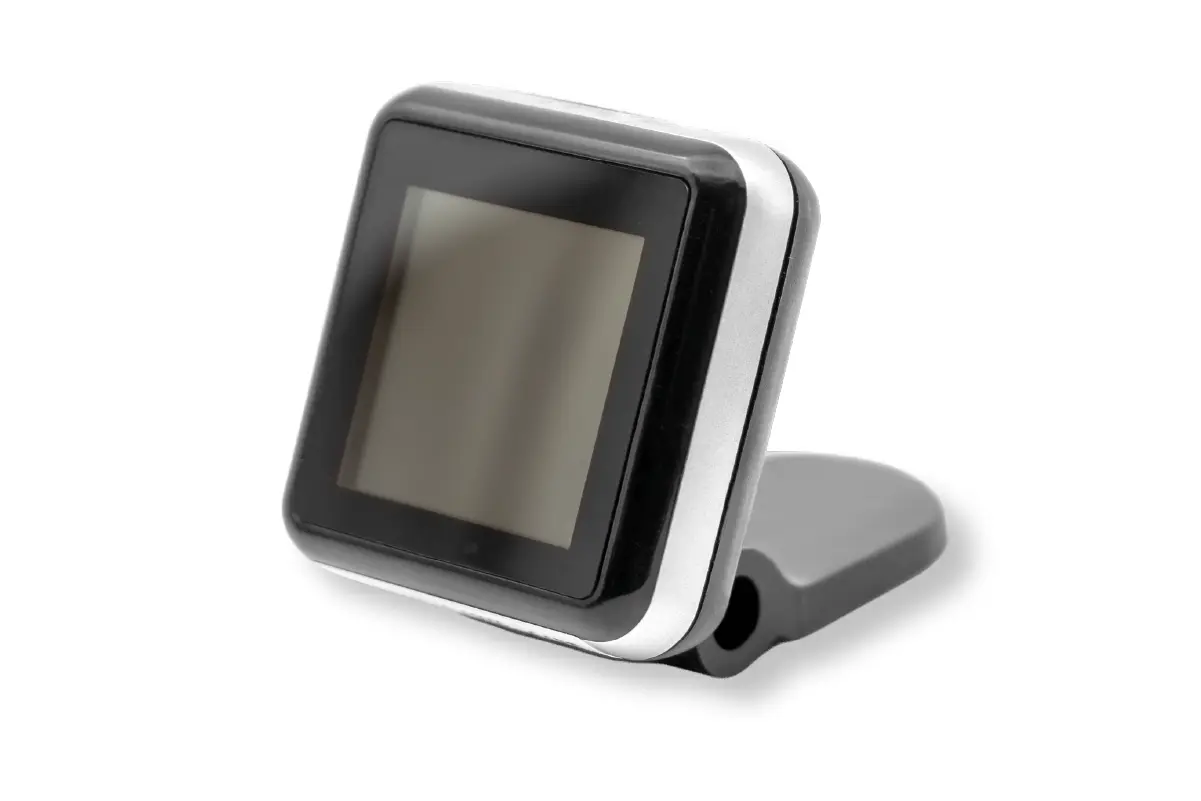

Hazard Warning Unit
Model |
Part Number |
| MDR-HWU-01 | 7417 |
Display size
36mm
Size (WxHxD)
42 x 45x 16mm
IP Rating
IP30
Warranty
3 years
Features
- For use with IP AI Cameras
- 2-stage visual and audible driver alerts
- 2 stage + continuous beeping for forward collision warning and driver fatigue alerts (dependant on camera connected)
- TFT-LCD gloss display
- Resolution 128×128 pixel
- Brightness 400cd/m2
- Connects directly to MDR-644
Durability & Standards
- Mechanical vibration: 8.5G
- Mechanical shock: 51G
- Operating temperature: -30 to +70°C
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
- ICC approved
Product Data
| Model | Product Data |
| MDR-HWU-01 (7417) | View data |
Product Breakdown
Forward Facing Internal Camera Alerts
Forward Collision Warning
Detects potential collisions and provides timely alerts to drivers
Lane Departure Warning
Alerts drivers when the vehicle unintentionally strays from its lane
Headway Monitoring Warning
Reduces tailgating risks by maintaining safe distances from other vehicles
Equip your fleet with Brigade’s safety technology.
Contact us to learn how our solutions can enhance visibility, reduce risks, and keep your drivers and fleet safe.
Driver Facing Camera Alerts
Driver Drowsiness
Mobile Phone Use
Smoking
Why Choose Brigade’s Driver Facing Camera?
Unseen Fatigue, Spotted Instantly
Brigade’s Driver Facing Camera is not a monitoring tool – it’s a drivers ally.
Designed to ensure driver safety and comfort on the road, and extensively tested for real-world accuracy, Brigade’s Driver Facing Camera minimises unnecessary alerts whilst delivering actionable insights for drivers and fleet management.
Level 1
Threshold at which the driver receives an audible voice alert, offering guidance based on the algorithm’s analysis of images from the Driver-Facing Camera.
Level 2
Typically set at a higher value than Level 1, this threshold triggers a high-pitched beep instead of a voice alert to immediately capture the driver’s attention.
All alerts are fully customisable
Vehicle DVR
The MDR-644 features 4 analogue and 4 IP camera inputs available with a 1TB or 2TB hard drive or solid-state drive. Includes models with 4G connectivity capabilities.
- 9-32Vdc
- 4 x Analogue & 4 x IP camera inputs
- Supports up to 12 cameras using an external PON Switch
- Size (WxHxD): 190 x 82 x 222mm
- 8 trigger/alarm inputs
- Lockable and interchangeable Hard Drive Unit
- Fast, easily downloadable recordings and data
- 3 year warranty
Explore our range of
Vehicle Recording Systems
Digital Recorders (MDR)
Our MDR range of digital video recorders offers high-quality recording functionality so that you can rest assured that you and your drivers are protected. Brigade’s MDR digital video recorders offer the ideal solution, providing accurate eye-witness and irrefutable evidence in the event of an incident.
Provides Protection
Encourages Driver Best Practice
Vandalism Deterrent
Piece of Mind
AI Connected Dashcams
The AI Connected Dashcam is a compact, windscreen-mounted dual camera system that uses AI technology to provide event warnings, high-definition incident recording and monitor driver behaviour.
Artificial Intelligence
4G Connected
1TB Storage
