BE-870LM
The Brigade BE-870LM is a 7" monitor with 2 camera inputs and a 5 year warranty. Ideal for heavy duty plant and commercial vehicles.
Speak to our teamProduct Resources

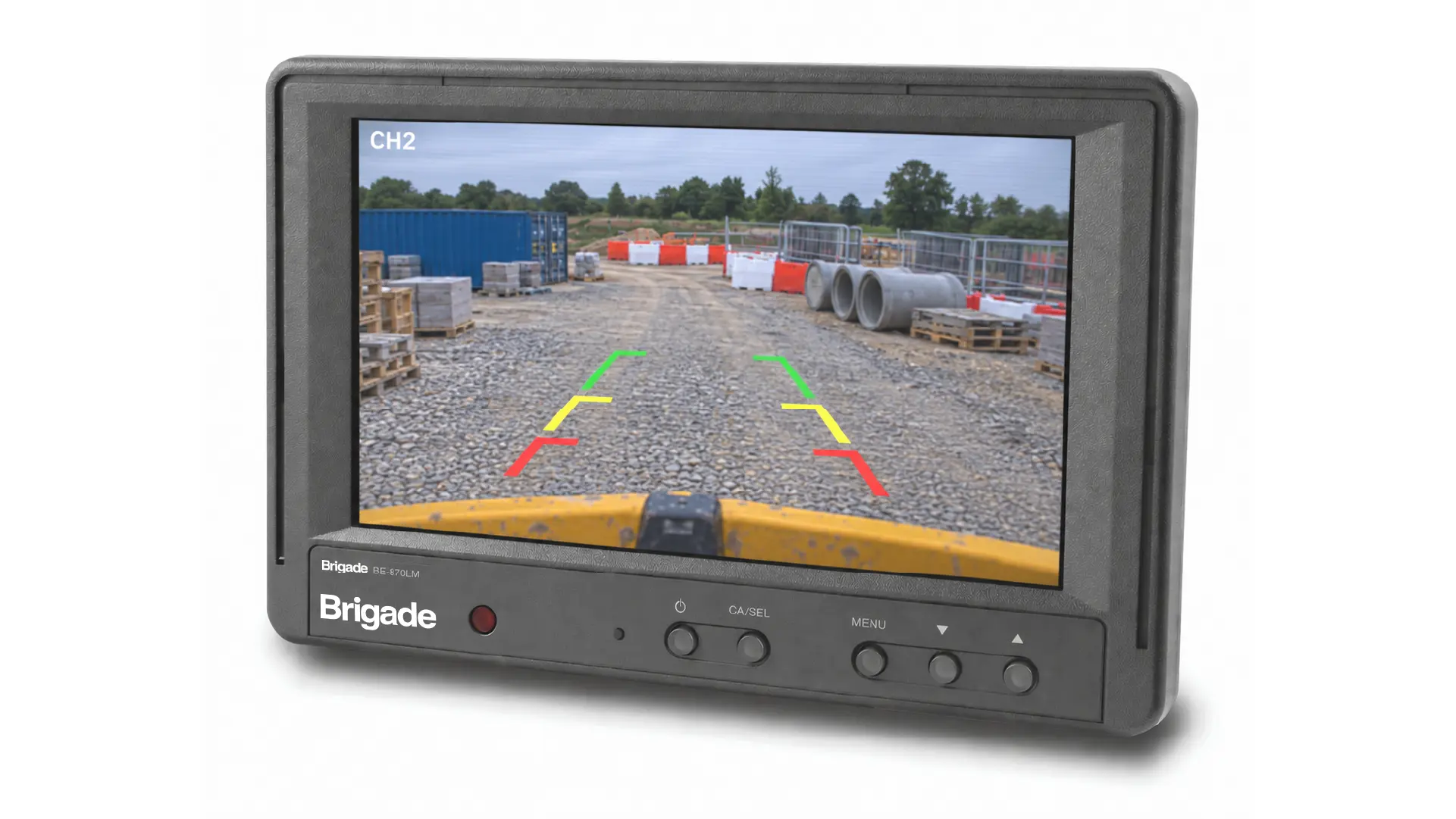

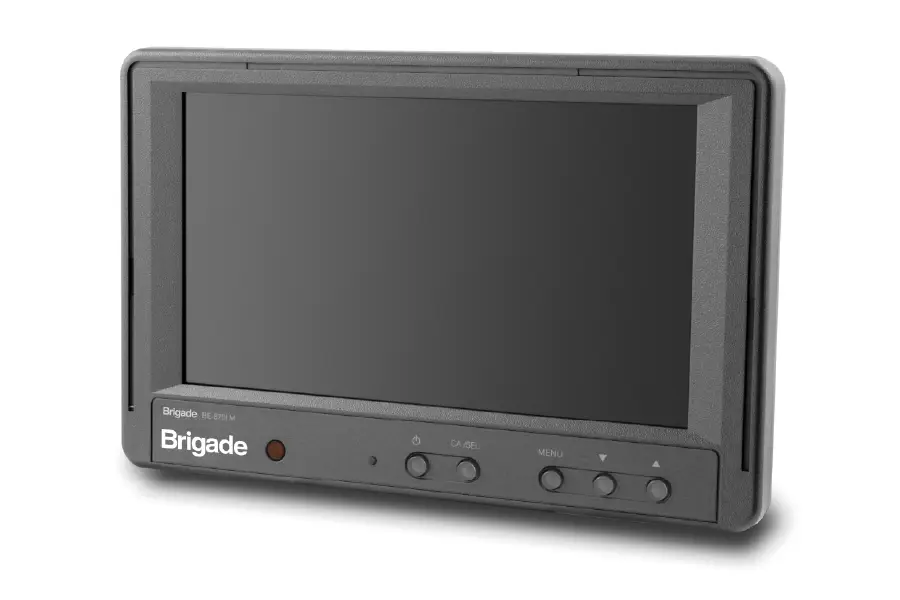

Elite 7″ Digital LCD Monitor
- BE-870LM
Part Number: 2705
Elite Range
Top of the range systems that are the first choice for Original Equipment Manufacturers (OEM) and bodybuilders. Exceptional quality and consistent performance in the harshest conditions. Rigorously tested to higher standards, the superior components and build quality are refelected in the ELITE series’ 5 year warranty. Ideal for heavy duty applications including N2 and N3 Heavy Goods Vehicles (HGVs), on/off-highway vehicles, agricultural machinery and mobile plant used on Construction, Civil Engineering, Quarry and Mine sites.
Specification Overview
- Display size: 7″
- Screen resolution: 800 x 480
- Camera inputs: 2
- IP Rating: Monitor – IP30. Connector – IP40
- 12-24Vdc
- Size (WxHxD): 197 x 128 x 34mm
- 5-year warranty
Features
- 2 Camera inputs
- Shutter camera compatible – both inputs
- ‘Button-lock’ anti tamper feature
- 2 Auto-triggers with configurable triggeroff delays
- Mirror / Normal switching from menu
- On-screen distance and vertical line markers
- Audio
- Sun shield
- Auto-dimmer and keypad illumination
- Multi-lingual menus
- Auto-switching PAL / NTSC
Picture Quality
- LED backlighting (gives 20,000 hours life)
- Anti-glare screen
- Resolution: 800 x 480
- Contrast ratio: 500:1
- Brightness: 400cd/m2
- Viewing angles: Side 70° x Top 50° x Bottom 70°
Power
- Power consumption: 12 Watts
- Current: 1 Amp
Durability & Standards
- Mechanical vibration: 2.5G
- Mechanical shock: 51G
- Operating temperature: -30 to +70°C
- CE marked
- E-Marked: UNECE R10 compliant
- *Camera monitor system R46 approved
Product Resources
Elite 7″ Digital LCD Monitor
Product Data
| Model | Part Number | Product Data |
| BE-870LM | 2705 | View data |
Product Data
