Front Corner Blind Spot Detection
Cornerscan®Cornerscan® uses ultrasonic sensors to monitor the front nearside blind spot, helping drivers detect pedestrians, cyclists and obstacles during manoeuvring and turning operations.
Speak to our teamProduct Resources
Cornerscan® Ultrasonic Detection System

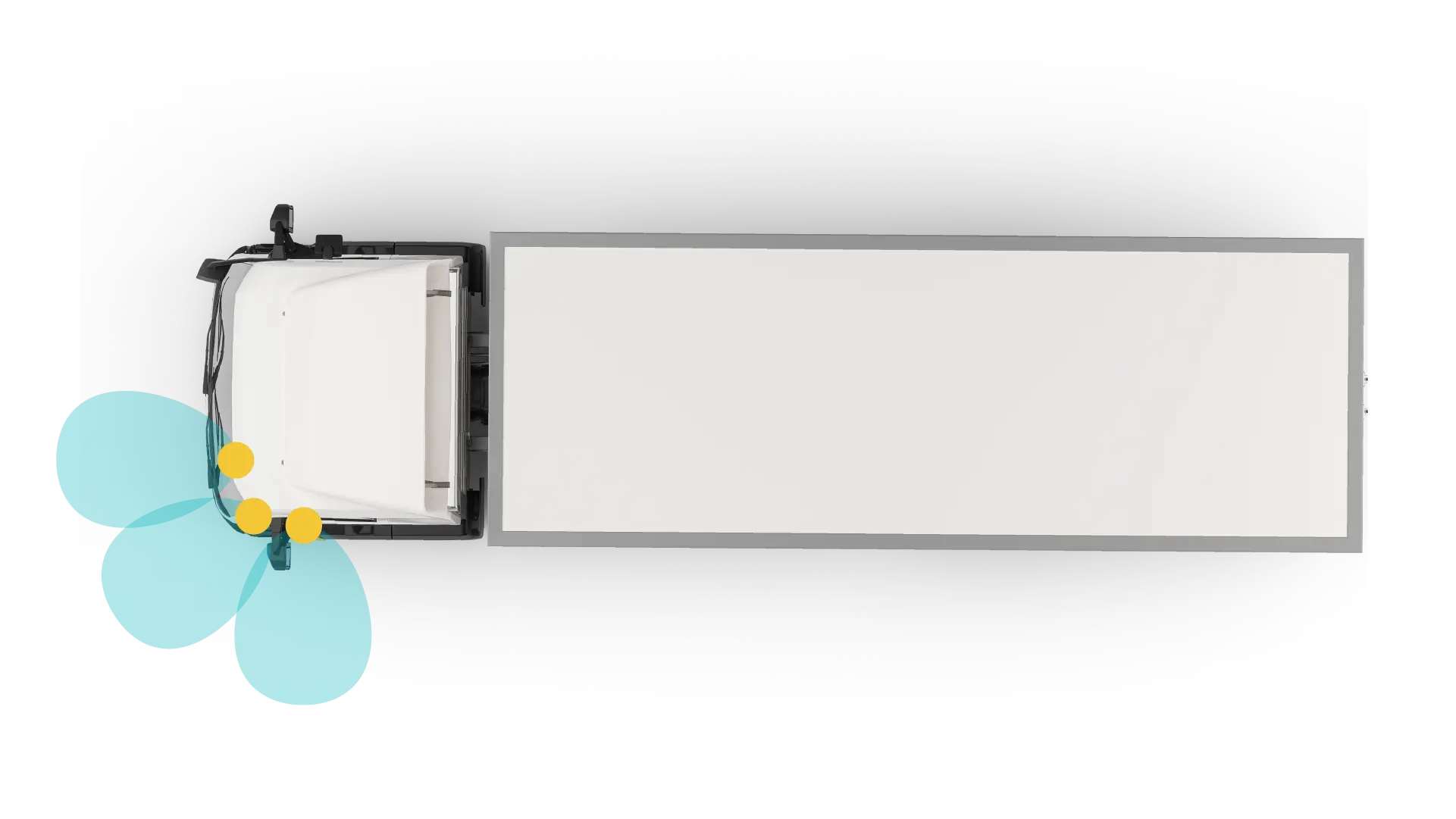

Cornerscan® is an ultrasonic detection system designed to monitor the front nearside corner blind spot of commercial vehicles. Using three ultrasonic sensors, the system detects obstacles that may be hidden from the driver’s view and provides audible and visual warnings to help prevent collisions during low-speed manoeuvres.
Ideal for urban environments, depots and confined operating areas, Cornerscan® helps drivers manoeuvre with greater confidence while protecting pedestrians, cyclists, vehicles and property.
Cornerscan® Ultrasonic Front Corner Blind Spot Detection Sensor System
Models
- CS-3100
Part Number: 5261
Specification Overview
- 3 ultrasonic sensors
- 12-24Vdc
- 0.6m/1m detection range
- Audible distance warning
- 3-year warranty
Features
- Obstacles detected in under 200 milliseconds
- Buzzer with audible distance warning, LED & adjustable volume control
- Buzzer will silence after 4 seconds if there is no movement from detected object or vehicle
- Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
- Self-diagnostic function
Contents
- 3 x sensors
- Buzzer
- 3 x 11° flush mount fixings
- 3 x 18° flush mount fixings
- 3 x 26° flush mount fixings
- Waterproof control box
- 2.5m display cable
- 3 x 2.5m sensor cables
Durability & Standards
- Mechanical vibration: 5G
- Mechanical shock: 10G
- Operating temperature: -30 to +80ºC
- Waterproof sensors to IP68
- Waterproof control box to IP69K
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
Power
- Power consumption: 2.4 Watts
- Current: 2 Amps
Need Help Finding the Right Ultrasonic System?
Speak to our safety experts to see how a Ultrasonic Detection System can protect your drivers and fleet.
Benefits
Front Corner Blind Spot Detection
Enhanced Front Corner Visibility
Monitors the front nearside blind spot where obstacles can be difficult to detect using mirrors alone.
Improved Pedestrian and Cyclist Awareness
Helps drivers identify vulnerable road users operating close to the vehicle.
Reduced Collision Risk
Provides warnings before contact occurs, helping prevent costly impacts with fixed objects and surrounding vehicles.
Increased Driver Confidence
Supports safer manoeuvring in tight spaces and busy urban environments.
