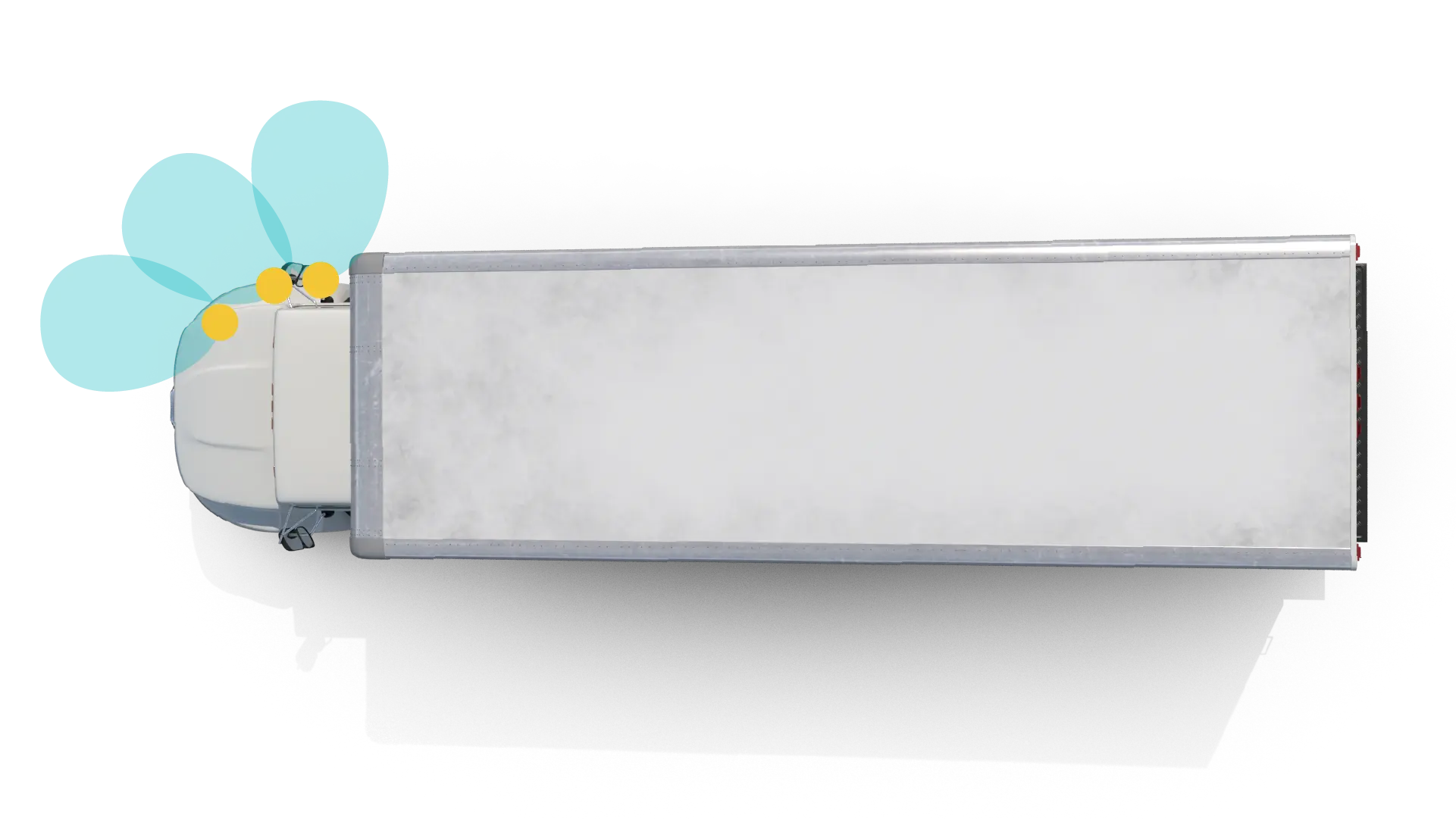

Cornerscan® Ultrasonic Detection System

Model

Part Number
CS-3100: Cornerscan® Corner sensor system with mute function 5261
  • 3 Sensor system
  • 12-24Vdc
  • 0.6m/1.0m detection range - (selectable via dip switch)
  • Audible distance warning
  • Flush-mount
  • 2 levels of sensitivity - (selectable via dip switch)
  • 3 year warranty

CORNERSCAN® ULTRASONIC DETECTION SYSTEM:
CS-3100 (5261)



Contents
  • 3 x sensors
  • Buzzer
  • 3 x 11° flush mount fixings
  • 3 x 18° flush mount fixings
  • 3 x 26° flush mount fixings
  • Waterproof control box
  • 2.5m display cable
  • 3 x 2.5m sensor cables
Features
  • Obstacles detected in under 200 milliseconds
  • Buzzer with audible distance warning, LED & adjustable volume control
  • Buzzer will silence after 4 seconds if there is no movement from detected object or vehicle
  • Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
  • Self-diagnostic function
Durability & Standards
  • Mechanical vibration: 5G
  • Mechanical shock: 10G
  • Operating temperature: -30 to +80ºC
  • Waterproof sensors to IP68
  • Waterproof control box to IP69K
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
Power
  • Power consumption: 2.4 Watts
  • Current: 2 Amps
Product Data
Model Product Data
CS-3100 View data
