Upgrade Existing Vehicle Cameras with AI
AI Box
Transform Existing Vehicle Cameras with AI Detection
The Brigade AI Box is a simple way to upgrade existing vehicle cameras with AI-powered human detection.
Designed for compatible analog camera systems, the AI Box adds Human Form Recognition (HFR) technology to existing cameras and monitors. There is no need to replace cameras, monitors or vehicle cabling.
Installed in-line with the current system, the AI Box detects people within configurable detection zones and provides visual and audible alerts to support driver awareness during manuevering and low-speed operations.
Compatible with up to two analog cameras (AHD, CVBS, NTSC and PAL).
Add AI Detection Without Replacing Your Camera System
Many fleets want the benefits of AI-powered detection but are concerned about the cost and downtime associated with replacing existing camera systems.
The AI Box provides a cost-effective upgrade path. By connecting directly to compatible analog cameras, it adds Human Form Recognition technology to the existing installation.

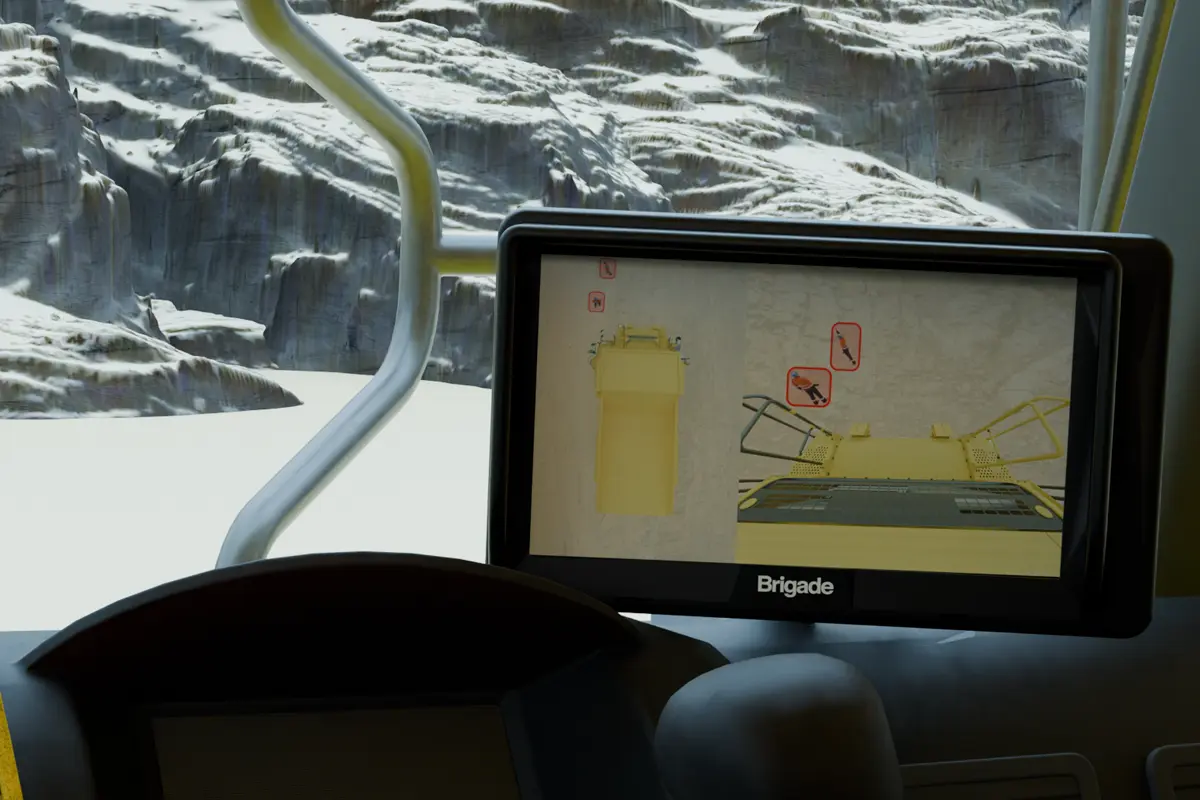

The system continuously analyzes camera images and identifies people within defined detection zones. When a person is recognized, the driver receives an immediate visual and audible alert.
This allows fleets to move towards AI-assisted vehicle safety while protecting previous investments in camera equipment.
Reduce Downtime and Installation Costs
Vehicle downtime affects productivity and operational efficiency. Unlike a full camera system replacement, the AI Box is designed for rapid installation using existing camera infrastructure.
Install AI detection without lengthy vehicle workshop visits or major system modifications.
Reuse existing compatible cameras, monitors and cabling to reduce overall installation time and labor requirements.
*Installation time and costs may vary depending on vehicle type, existing equipment and installation requirements.
Why Upgrade Existing Vehicle Cameras with AI?
Replacing an entire camera system can be costly and time-consuming. The AI Box provides a practical alternative by adding artificial intelligence to compatible existing camera systems.
Gain the benefits of Human Form Recognition technology while reducing installation costs, minimizing downtime and extending the life of existing equipment.

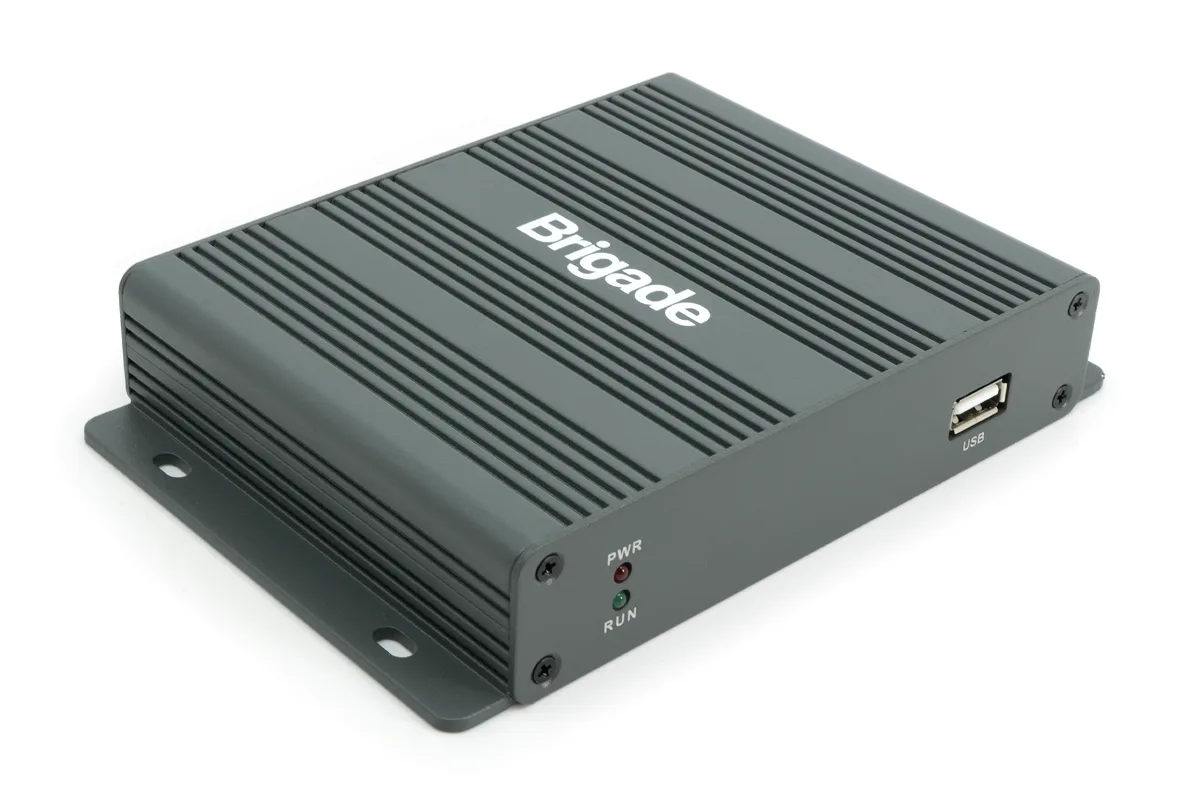

Brigade AI Box
AI Human Form Recognition Upgrade Module
Models
- VBV-1230C-AI: AI human form recognition upgrade module
Part Number: 8385
Specification Overview
- 10-32Vdc
- Compatible with 2 analog cameras
- Picture elements: PAL/NTSC/720P/1080P
- Fully customizable detection area
- Size (WxHxD): 28 x 104 x 154mm
- 3-year warranty
Features
- Overlays AI detection onto CVBS and AHD cameras
- Compatible with Brigade MDR systems
- I/O alarm integration for internal and external alerts
- Configurable VRU detection zones (Wi-Fi dongle required)
- Face Mosaic & Blind Mode privacy features
- Adapter cable available for Backeye® 300 and 200 integration
Contents
- x1 VBV-1230-AI-ECU
- x1 VBV-1230-AI-Power Harness
- x1 VBV-1230-AI-Video Harness
- x1 VBV-1230-AI-Alarm Input and Output Cable Harness
Specifications
- Operating Voltage: DC-10V-32V
- Current Consumption: 18W @12V
- TV Systems: Picture Elements PAL/NTSC/720P/1080P
- Triggers: 2 channel trigger input & 2 channel trigger output (Diode protected relay required, to control external devices)
- Diode protected relay required, to control external devices
- Video Output: Approx 1.0 Vp-p/75Ω
- Overall Dimensions (HxWxD): 28 x 104 x 154mm
- Housing Material: Metal
- Finish: Brigade Grey
- Assembled Weight: 1000g
- Select range connections (can connect to Elite range cameras with adaptor)
Durability & Standards
- Operating Temperature: -20° to +70°C
- Vibration Resistance: 5.9G
- CE – EN IEC 61000-6-2:2019 /
- EN IEC 61000-6-3:2021
- FCC – FCC Part 15B, Class B
- ICES – ICES-003, Class B
- REACH
- WEEE
- ISO 21434
Features
Works with Existing Cameras
Compatible with up to two analog cameras (AHD, CVBS, NTSC and PAL), allowing AI functionality to be added without replacing existing equipment.
Configurable Detection Zones
Create custom Human Form Recognition detection areas or use pre-configured settings to suit different vehicles and operating environments.
Plug-and-Play Installation
Connects directly into existing camera cabling for a fast and straightforward installation process.
Additional Features
Includes camera obstruction alerts and face-blurring functionality to support privacy requirements.
Benefits
Upgrade Existing Vehicle Cameras with AI
Add Human Form Recognition technology to compatible camera systems without replacing cameras or monitors.
Driver Alerts
Visual and audible warnings help drivers become aware of people detected within the configured detection zone.
Reduced Installation Costs
Reuse existing camera infrastructure to minimise upgrade costs and maximize the value of current equipment.
Proven Reliability
Built on years of AI model development and real-world fleet experience to deliver dependable detection performance.
Need Help Upgrading Your Existing Vehicle Cameras with AI?
Our team can help determine whether your current camera system is compatible and recommend the best AI upgrade solution for your fleet.
Product Resources
AI Box
Product Data
| Model | Part Number | Product Data |
| VBV-1230C-AI | 8385 | View data |
Product Data
Frequently Asked Questions
Can I upgrade existing vehicle cameras with AI?
Do I need to replace my vehicle cameras to get AI detection?
What types of cameras are compatible with the AI Box?
What does AI detection do on a vehicle camera system?
Why upgrade existing vehicle cameras with AI instead of replacing them?
What is Human Form Recognition?
