Bringing safety to the van market
To help combat safety challenges faced in the van sector, Brigade Van has been developed exclusively for the fast-moving market. Working alongside the primary Brigade range, Brigade Van’s portfolio has been especially selected to offer quality products at competitive prices.
Brigade Van
Camera Monitor Systems
Brigade Van camera monitor systems enable drivers to maneuver and drive safely. Cameras can help the driver to see blind spots and offers a back up aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles. All cameras are compatible with Brigade Van recorders.
Brigade Van
HD
AHD Front Camera
- High Definition (720p)
- IP55
- Viewing angle (HxVxD): 92 x 51 x 102.9°
- Size (WxHxD): 115 x 98 x 53mm
- 1 year warranty
Brigade Van
HD
IP69K
AHD License Plate Camera
- High Definition (720p)
- IP69K
- Viewing angle (HxVxD): 145 x 80 x 165.6°
- Size (WxHxD): 215 x 68 x 42mm
- LEDs
- Audio
- 1 year warranty
Brigade Van
HD
IP69K
AHD Eyeball Camera
- High Definition (720p)
- IP69K
- Viewing angle (HxVxD): 110 x 82 x 152°
- Camera Size (WxHxD): 57 x 42 x 70mm
- Adaptor: 57 x 42 x 25mm
- Rotatable Lens
- LEDs
- Audio
- 3 year warranty
Brigade Van
HD
7″ FHD Mirror Monitor
Models
Model |
Part Number |
| BL-270HM: Clips over existing rear view mirror | 7153 |
| BL-270HM-015: Mirror monitor with fan bracket | 7298 |
- 7″
- High Definition (1080p)
- 2 Camera inputs
- 2 Alarm triggers
- Size (WxHxD): 250 x 107 x 40mm
- Audio
- 1 year warranty
Features
- LCD Panel
- On Screen Display Menu (OSD)
Approved Standards
- CE
- UKCA
- RoHS
- REACH
- WEEE
Product Data
| Model | Product Data |
| BL-270HM | View data |
Brigade Van

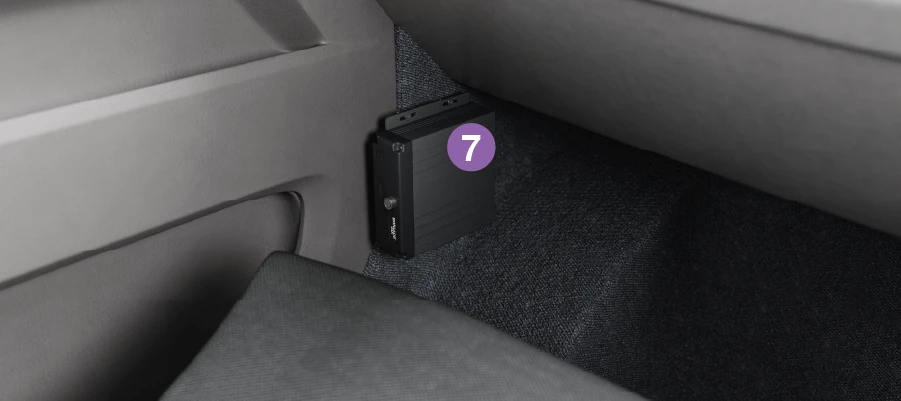

Recording Systems
False claims, “crash-for-cash” and shrinkage are now costing businesses millions each year, along with issues of vehicle vandalism and attacks on drivers. Brigade Van’s digital recording products offer a solution by providing an accurate witness and giving irrefutable evidence in the case of an incident.
Brigade Van
HD
FHD Digital Recorder
- High definition (1080p)
- 4 Camera inputs
- 4 Alarm triggers
- 256GB
- Size (WxHxD): 153 x 141 x 42mm
- Audio
- 1 year warranty
Brigade Van
HD
AHD Dashcam Recorder
- High definition (720p)
- 12-24Vdc
- In-built camera
- 1 external camera input
- 1 video output
- Fast, easily downloadable recordings and data
- Dash Cam Size (WxHxD): 78 x 34.6 x 31.5mm
- Rear-view Camera size (WxHxD): 61 x 30.5 x 25mm
- 1 year warranty
Features
- 1080p High definition video capture
- Wide-angle camera lens 140°
- Wide dynamic range for improved detail in shadow and highlights
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Continuous recording with automatic overwriting of oldest data
- Audio
- External GPS receiver
- FAT (File Allocation Table) system eliminates the need for manual formatting of video files
- 4 recording modes:
- Continuous – Records in 1min segments
- Incident – Records 10 seconds before and after an incident
- Manual – Records 10 seconds before and 50 seconds after manually starting recording
- Parking mode – Requires hard wiring
- Adjustable camera (rear-view camera only)
Durability & Standards
- Operating temperature: -10 to +60°C
- CE marked
Product Data
| Data | Product Data |
| DC-101 | View data |
Brigade Van
HD
AHD Dashcam Recorder
- High definition (720p)
- 12-24Vdc
- In-built camera
- 1 external camera input
- 1 video output
- Fast, easily downloadable recordings and data
- Dash Cam Size (WxHxD): 78 x 34.6 x 31.5mm
- Infrared Camera size: (WxHxD) 61 x 30.5 x 25mm
- 1 year warranty
Features
- 1080p High definition video capture
- Wide-angle camera lens 140°
- Wide dynamic range for improved detail in shadow and highlights
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Continuous recording with automatic overwriting of oldest data
- Audio
- External GPS receiver
- FAT (File Allocation Table) system eliminates the need for manual formatting of video files
- 4 recording modes:
- Continuous – Records in 1min segments
- Incident – Records 10 seconds before and after an incident
- Manual – Records 10 seconds before and 50 seconds after manually starting recording
- Parking mode – Requires hard wiring
- Infrared LEDs for ultra-low light performance (Infrared camera only)
- Adjustable camera angle (Infrared camera only)
Durability & Standards
- Operating temperature: -10 to +60°C
- CE marked
Product Data
| Data | Product Data |
| DC-102-IRC | View data |
Brigade Van
HD
AHD Dashcam Recorder
- High definition (720p)
- 12-24Vdc
- In-built camera
- 1 external camera input
- 1 video output
- Fast, easily downloadable recordings and data
- Dash Cam Size (WxHxD): 78 x 34.6 x 31.5mm
- Infrared Camera size: (WxHxD) 61 x 30.5 x 25mm
- 1 year warranty
Features
- 1080p High definition video capture
- Wide-angle camera lens 140°
- Wide dynamic range for improved detail in shadow and highlights
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Continuous recording with automatic overwriting of oldest data
- Audio
- External GPS receiver
- FAT (File Allocation Table) system eliminates the need for manual formatting of video files
- 4 recording modes:
- Continuous – Records in 1min segments
- Incident – Records 10 seconds before and after an incident
- Manual – Records 10 seconds before and 50 seconds after manually starting recording
- Parking mode – Requires hard wiring
- Infrared LEDs for ultra-low light performance (Infrared camera only)
- Adjustable camera angle (Infrared camera only)
Durability & Standards
- Operating temperature: -10 to +60°C
- CE marked
Product Data
| Data | Product Data |
| DC-102-RVC | View data |
Brigade Van
Warning Systems
Quiet Vehicle Sounder
Front speaker system designed for electric and hybrid-electric vehicles, the QVS Electric Vehicle Sounder warns pedestrians and other vulnerable road users that a quiet vehicle is approaching. Incorporating bbs-tek® technology, the pitch and volume increase with vehicle speed in a similar way as an internal combustion engine. Sound cuts out above a pre-set speed threshold.
bbs-tek® White Sound® Backup Alarm
The safest alarms in the world due to their instant locatability and directional sound. The multi-frequency alarms are only heard in the danger zone, thus eliminating noise nuisance for local residents.
Brigade Van
Sensor Systems
Brigade’s ultrasonic proximity sensors minimize both vehicle damage and collisions with pedestrians, cyclists, or objects. Perfect for vehicles operating in confined spaces or maneuvering at low speed. The detection system alerts the driver of obstacles close to the vehicle, whether moving or stationary.
- 4 sensor system fitted to rear of vehicle
- Underslung or flush mount installation
- System activated by reverse gear
