Nearside Step Detection
Stepscan™Stepscan™ is a nearside step detection system that uses ultrasonic sensors to monitor the cab step blind spot, helping drivers detect pedestrians, cyclists and obstacles during low-speed maneuvers.
Speak to our teamProduct Resources
Stepscan™ Ultrasonic Detection System

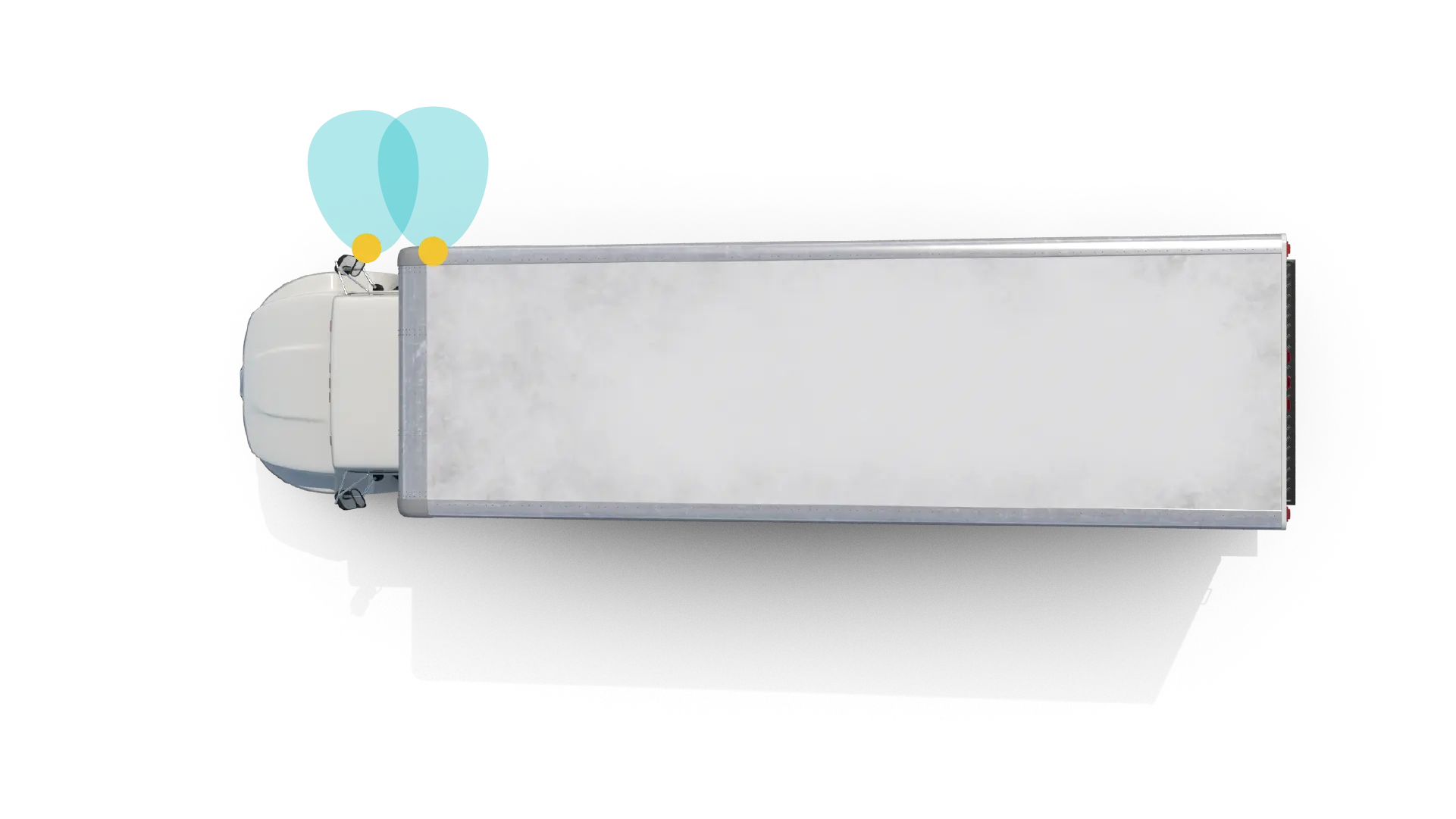

Stepscan™ is a nearside step detection system designed to monitor the area around the nearside cab step of commercial vehicles. Using two ultrasonic sensors, the system detects pedestrians, cyclists and obstacles that may be hidden close to the vehicle and alerts the driver through audible and visual warnings.
By improving awareness of hazards in this critical blind spot, Stepscan™ helps reduce the risk of collisions during low-speed maneuvers, turning and reversing.
Stepscan™ Ultrasonic Nearside Step Detection System
Models
- ST-2100
Part Number: 5262 - ST-2100-60-A: Low speed trigger module
Part Number: 5345
Specification Overview
- 2 ultrasonic sensors
- 12-24Vdc
- 0.6m/1m detection range
- Audible distance warning
- 3-year warranty
Features
- Obstacles detected in under 200 milliseconds
- Buzzer with audible distance warning, LED & adjustable volume control
- Buzzer will silence after 4 seconds if there is no movement from detected object or vehicle
- Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
- Self-diagnostic function
Contents
- 2 x sensors
- Buzzer
- 2 x 11° flush mount fixings
- 2 x 18° flush mount fixings
- 2 x 26° flush mount fixings
- Waterproof control box
- 2.5m buzzer cable
- 2x 2.5m sensor cables
Durability & Standards
- Mechanical vibration: 5G
- Mechanical shock: 10G
- Operating temperature: -30 to +80ºC
- Waterproof sensors to IP68
- Waterproof control box to IP69K
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
Power
- Power consumption: 2.4 Watts
- Current: 200mA
Need Help Finding the Right Ultrasonic System?
Speak to our safety experts to see how a Ultrasonic Detection System can protect your drivers and fleet.
Benefits
Nearside Step Detection
Enhanced Nearside Blind Spot Protection
Monitors the area around the cab step where pedestrians, cyclists and obstacles can otherwise go undetected.
Improved Vulnerable Road User Safety
Helps drivers identify people operating close to the vehicle during turning and maneuvering.
Reduced Collision Risk
Provides early warnings of nearby hazards, helping prevent low-speed incidents.
Increased Driver Awareness
Delivers clear audible and visual alerts that support safer driving decisions.
Product Resources
Stepscan™
Product Data
| Model | Part Number | Product Data |
| ST-2100 | 5262 | View data |
Product Data
