Stepscan™ Ultrasonic Detection System
Model |
Part Number |
| ST-2100 - Stepscan™ Step sensor with mute system function | 5262 |
| ST-2100-60-A - Stepscan™ Step sensor system with mute function and low speed trigger module | 5345 |

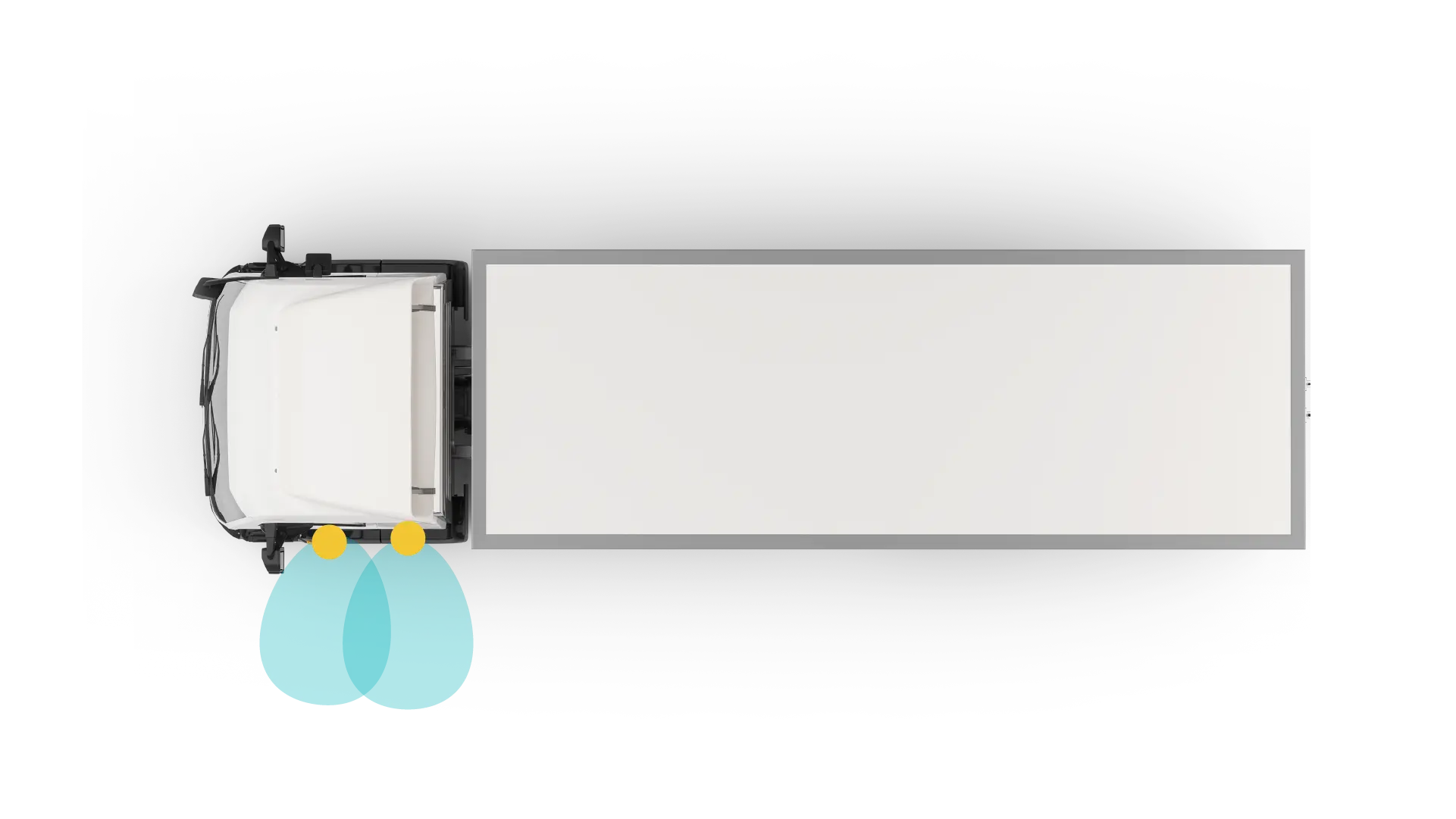

- 2 Sensor system
- 12-24Vdc
- 0.6m/1.0m detection range - (selectable via dip switch)
- Audible distance warning
- Flush-mount
- 2 levels of sensitivity - (selectable via dip switch)
- 3 year warranty
STEPSCAN™ ULTRASONIC DETECTION SYSTEM: ST-2100 (5262)
Other models include:
- ST-2100-60-A (5345)

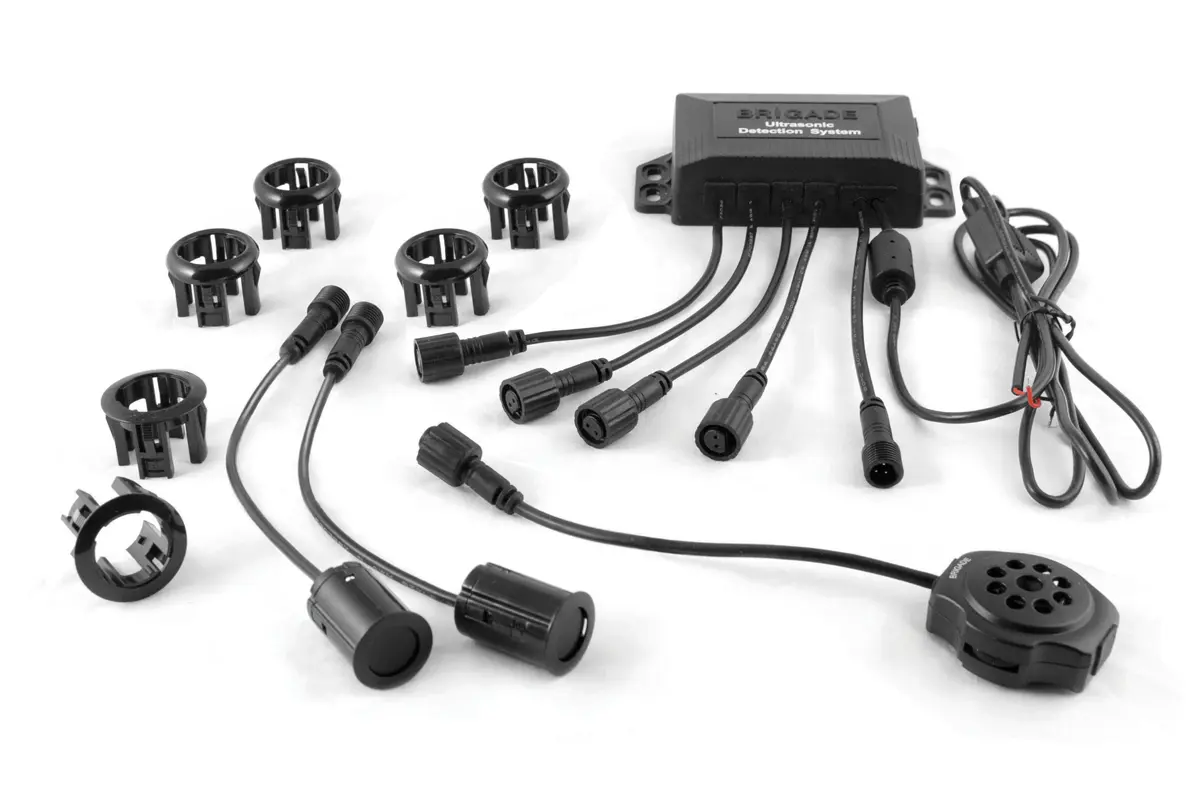

Contents
- 2 x sensors
- Buzzer
- 2 x 11° flush mount fixings
- 2 x 18° flush mount fixings
- 2 x 26° flush mount fixings
- Waterproof control box
- 2.5m buzzer cable
- 2 x 2.5m sensor cables
Features
- Obstacles detected in under 200 milliseconds
- Buzzer with audible distance warning, LED & adjustable volume control
- Buzzer will silence after 4 seconds if there is no movement from detected object or vehicle
- Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
- Self-diagnostic function
Durability & Standards
- Mechanical vibration: 5G
- Mechanical shock: 10G
- Operating temperature: -30 to +80ºC
- Waterproof sensors to IP68
- Waterproof control box to IP69K
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
Power
- Power consumption: 2.4 Watts
- Current: 200mA
