BE-800C

The BE-800C ELITE WDR Camera is a tough IP69K vehicle camera with Wide Dynamic Range for improved detail in shadows and highlights. It offers viewing angle options across the model range, plus infrared LEDs, a day/night sensor, heater, microphone, mirror/normal view and a 5-year warranty.
Speak to our teamProduct Resources

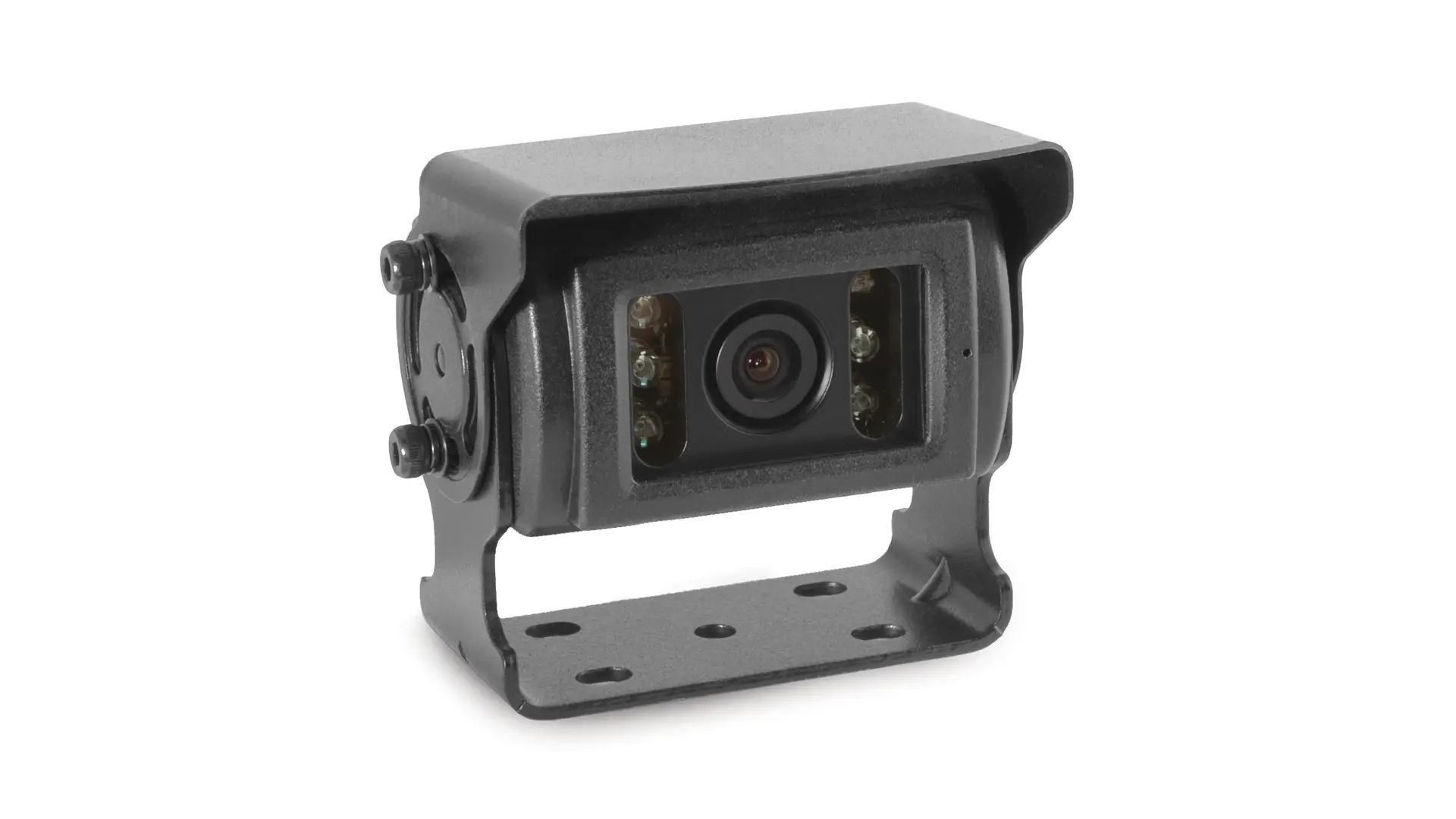

Brigade BE-800C Elite WDR Camera

ELITE WDR Camera

Models

25fps (PAL)
  • BE-800C: 101° x 72° x 133° (viewing angle)
    Part Number: 1623
  • BE-800C(40): 33° x 25° x 40° (viewing angle)
    Part Number: 1559
  • BE-800C(78): 64° x 47° x 78° (viewing angle)
    Part Number: 1426
  • BE-890C: IP69K, No microphone. 101° x 72° x 133° (viewing angle)
    Part Number: 2871
  • BE-800-NIR: No LEDs
    Part Number: 1559
30fps (NTSC)
  • BE-801C: 101° x 72° x 133° (viewing angle)
    Part Number: 1905
  • BE-801C(40): 33° x 25° x 42° (viewing angle)
    Part Number: 2085
  • BE-801C(78): 71° x 52° x 94° (viewing angle)
    Part Number: 2084
  • BE-891C: IP69K, No microphone. 101° x 72° x 133° (viewing angle)
    Part Number: 5426

Specification Overview

  • 12Vdc
  • Wide Dynamic Range for improved detail in shadows and highlights
  • IP69K
  • Day/Night sensor
  • Heater
  • Microphone
  • Size (WxHxD): 86 x 72 x 80mm
  • Automatic white balance
  • 5-year warranty
Features
  • Wide Dynamic Range for improved detail in shadows and highlights
  • 5 Infrared LEDs for ultra-low light performance (except BE-800C-NIR)
  • Day / Night sensor
  • Heater
  • Microphone
  • Mirror / Normal view
  • Automatic white balance
  • Sony CMOS sensor
  • TV lines: 600
Power
  • Power consumption: 4.5 Watts
  • Current: 0.33 Amps: (0.37 – 2.63 Amps BE-850C)
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -40 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
  • ISO 13766:2006
  • ISO 20653:2006
  • EN13309:2010
  • *Camera monitor system R46 approved BE-800C, BE-890C & BE-850C only

CAD Download

Complete the form below to download a CAD file for this product.

"*" indicates required fields

Product Resources

Elite WDR Camera

Product Data
Model Part Number Product Data
BE-800C 1623 View data
BE-801C 1905 View data
BE-800C(40) 1559 View data
BE-801C(40) 2085 View data
BE-800C(78) 1426 View data
BE-801C(78) 2084 View data
BE-890C 2871 View data
BE-891C 5426 View data
BE-850C 2871 View data
BE-800C-NIR 4247 View data
Product Data

BE-800C (1623)

BE-801C (1905)

BE-800C(40) (1559)

BE-801C(40) (2085)

BE-800C(78) (1426)

BE-801C(78) (2084)

BE-890C (2871)

BE-891C (5426)

BE-850C (2871)

BE-800C-NIR (4247)
