Wireless Reversing Camera Connection
Backeye® Wireless SystemCreate a wireless reversing camera system without extensive cabling. The Brigade Backeye® Wireless System delivers secure digital image transmission, simple installation, simple pairing and support for interchangeable trailers, helping improve rear visibility on commercial vehicles and machinery.
Speak to our teamProduct Resources
Turn Any Camera System into a Wireless Reversing Camera
Installing a reversing camera on large vehicles, trailers and machinery can be time-consuming due to the amount of cabling required.
The Backeye® Wireless System allows you to create a wireless reversing camera system without long cable runs between the camera and monitor. By removing unnecessary cabling, installation can be completed faster, saving up to two hours on fitment time and eliminating the need for additional retractable coiled cables on articulated vehicles.
Using secure digital wireless technology, the system delivers near real-time images with camera-to-monitor transmission in less than 200 milliseconds. Quick pairing makes installation simple, while the secure wireless connection helps ensure reliable image transmission in demanding working environments.
The system also includes an easy re-pairing function, allowing receivers to be linked to different transmitters. This makes it ideal for fleets operating interchangeable trailers, helping maintain visibility and safety across multiple vehicle combinations.
Brigade Backeye® Wireless System
Whether you’re fitting a truck reversing camera, trailer camera or machinery camera system, the Backeye® Wireless System provides a practical way to achieve the benefits of a wireless reversing camera while reducing installation complexity.

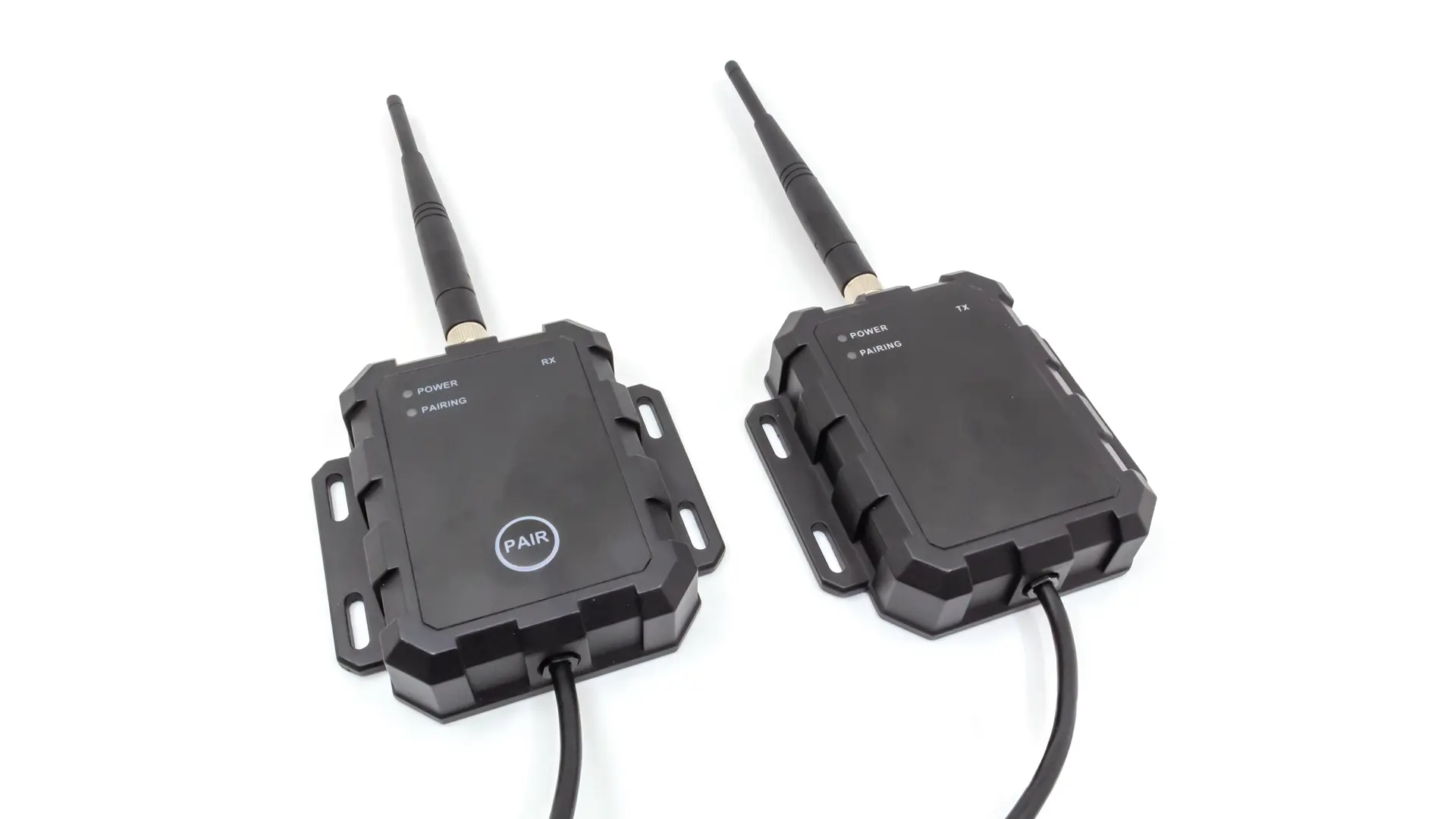

Backeye® Wireless System
Models
- DW-2000-TX: Wireless Transmitter
Part Number: 7088 - DW-2000-RX: Wireless Receiver
Part Number: 7089
Specification Overview
- 12-24Vdc
- CVBS, AHD 720p and 1080p compatible
- 1 camera input
- 200ms latency
- Triggered by reverse gear
- IP69K durability
- Size (WxHxD): 105 x 106 x 25.2mm
- 3-year warranty
Features
- CVBS, AHD 720P and 1080P compatible
- Image Latency: 200 milliseconds
- No need for retractable coiled cables
- Re-pair facility allows for interchangeable trailers
- Triggered by reverse gear
- Up to two transmitters can be paired to one receiver
- TV System AUTO
- Secure connection
- Easy 1-button pairing
- VBV Select range connectors
Power
- Power consumption: TX: 1.04 Watts RX: 0.12 Watts
Durability & Standards
- Operating temperature: -20 to +70°C
- CE marked
- FCC approved
Product Resources
Backeye® Wireless
Product Data
Adapter required to connnect Elite range camera and monitor.
Benefits
Wireless Reversing Camera System
Faster Installation
Reduce installation time by up to two hours by eliminating long cable runs between the camera and monitor.
Secure Digital Wireless Technology
Reliable digital transmission delivers camera images in less than 200 milliseconds.
Broad Compatibility
Compatible with CVBS, AHD 720P and AHD 1080P camera systems.
Flexible Pairing
Pair up to two transmitters with a single receiver for greater operational flexibility.
Frequently Asked Questions
Can a reversing camera be wireless?
Yes. A wireless reversing camera system transmits video from the camera to the monitor without the need for long cable runs. Brigade’s Backeye® Wireless System uses secure digital technology to provide fast image transmission while reducing installation time.
How does a wireless reversing camera work?
A wireless reversing camera uses a transmitter and receiver to send video images from the camera to the monitor. Once paired, the wireless connection allows drivers to view the camera feed without extensive vehicle cabling.
Are wireless reversing cameras reliable?
Modern digital wireless reversing camera systems provide secure and reliable image transmission. The Backeye® Wireless System delivers camera-to-monitor images in less than 200 milliseconds, helping drivers maintain rear visibility.
Can I use a wireless reversing camera on a trailer?
Yes. Wireless reversing camera systems are particularly useful for trailers because they remove the need for additional coiled cables between the tractor unit and trailer.
Can wireless reversing cameras be used on trucks?
Yes. Wireless reversing camera systems are commonly used on trucks, HGVs, refuse vehicles, construction equipment and other commercial vehicles where long cable runs can make installation more complex.
Can I switch trailers with a wireless reversing camera system?
Yes. The Backeye® Wireless System features a re-pairing function that allows a receiver to be linked to different transmitters, making it suitable for fleets with interchangeable trailers.
Does the Backeye® Wireless System work with existing cameras?
The Backeye® Wireless System is compatible with CVBS, AHD 720P and AHD 1080P camera systems, making it suitable for a wide range of vehicle camera installations.
