Cameras

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines means vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but, even greater, are the corporate and emotional costs when there is personal injury.

Brigade’s camera monitor systems enable drivers and operators to maneuver and drive safely. Vehicle-mounted CCTV cameras can help the driver see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Explore

Commercial Vehicle and Plant Safety Cameras

Front and Rear-View Cameras

ELITE

backeye®360 kit with 4 cameras, ecu and a monitor

HD

IP69K

IP68

AHD Camera

PAL Models

Model

Part Number

BE-8100C: (1080p) 6408
NTSC Models

Model

Part Number

BE-8101C: (1080p) 6410

Model

Part Number

BE-8101C: (1080p) 6410
  • High definition (1080p)
  • Viewing angle (HxVxD): 126 x 69 x 144°
  • IP68 / IP69K
  • Size (WxHxD): 86 x 72 x 78mm
  • 5 year warranty
Features
  • High defintion picture quality with 1080p AHD 2.0 video signal output
  • 4 Infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Heater
  • Microphone
  • Mirror / Normal view
  • Back Light Compensation
  • Automatic white balance
  • CMOS sensor
  • TV lines: 800
Power
  • Power consumption: 4.2 Watts
  • Current: 0.35 Amps
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -40 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
  • ISO 13766:2006
  • ISO 20653:2006
  • EN61000-6-3:2021
  • Camera monitor system R46 approved
Product Data
Model Product Data
BE-8101C View data
BE-8101C View data
Features
  • Wide Dynamic Range for improved detail in shadows and highlights
  • 5 Infrared LEDs for ultra-low light performance (except BE-800C-NIR)
  • Day / Night sensor
  • Heater
  • Microphone
  • Mirror / Normal view
  • Automatic white balance
  • Sony CMOS sensor
  • TV lines: 600
Power
  • Power consumption: 4.5 Watts
  • Current: 0.33 Amps: (0.37 – 2.63 Amps BE-850C)
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -40 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
  • ISO 13766:2006
  • ISO 20653:2006
  • EN13309:2010
  • *Camera monitor system R46 approved BE-800C, BE-890C & BE-850C only
Product Data
Model Product Data
BE-8101C View data

ELITE

backeye®360 kit with 4 cameras, ecu and a monitor

WDR

IP69K

IP68

WDR Camera

PAL Models

Model

Part Number

BE-800C 1623
BE-800C(40): 32 x 24 x 41° 1559
BE-800C(78): 69 x 51 x 92° 1426
BE-890C: IP69K, No microphone 2871
BE-800-NIR: No LEDs 4247

*Viewing angle

NTSC Models

Model

Part Number

BE-801C 1905
BE-801C(40): 33 x 25 x 42° 2085
BE-801C(78): 71 x 52 x 94° 2084

*Viewing angle

Model

Part Number

BE-801C 1905
BE-801C(40): 33 x 25 x 42° 2085
BE-801C(78): 71 x 52 x 94° 2084

*Viewing angle

  • Wide Dynamic Range
  • Viewing angle (HxVxD):
    102 x 76 x 132° PAL
    108 x 80 x 136° NTSC
  • IP68
  • Size (WxHxD): 86 x 72 x 80mm
  • 5 year warranty
  • Wide Dynamic Range
  • Viewing angle (HxVxD): 108 x 80 x 136°
  • IP68
  • Size (WxHxD): 86 x 72 x 80mm
  • 5 year warranty
Features
  • Wide Dynamic Range for improved detail in shadows and highlights
  • 5 Infrared LEDs for ultra-low light performance (except BE-800C-NIR)
  • Day / Night sensor
  • Heater
  • Microphone
  • Mirror / Normal view
  • Automatic white balance
  • Sony CMOS sensor
  • TV lines: 600
Power
  • Power consumption: 4.5 Watts
  • Current: 0.33 Amps: (0.37 – 2.63 Amps BE-850C)
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -40 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
  • ISO 13766:2006
  • ISO 20653:2006
  • EN13309:2010
  • *Camera monitor system R46 approved BE-800C, BE-890C & BE-850C only
Product Data
Model Product Data
BE-800C View data
BE-801C View data
BE-800C(40) View data
BE-801C(40) View data
BE-800C(78) View data
BE-801C(78) View data
BE-890C View data
BE-891C View data
BE-850C View data
BE-800C-NIR View data
Features
  • Wide Dynamic Range for improved detail in shadows and highlights
  • 5 Infrared LEDs for ultra-low light performance (except BE-800C-NIR)
  • Day / Night sensor
  • Heater
  • Microphone
  • Mirror / Normal view
  • Automatic white balance
  • Sony CMOS sensor
  • TV lines: 600
Power
  • Power consumption: 4.5 Watts
  • Current: 0.33 Amps: (0.37 – 2.63 Amps BE-850C)
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -40 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
  • ISO 13766:2006
  • ISO 20653:2006
  • EN13309:2010
  • *Camera monitor system R46 approved BE-800C, BE-890C & BE-850C only
Product Data
Model Product Data
BE-801C View data
BE-801C(40) View data
BE-801C(78) View data
BE-891C View data
BE-850C View data
BE-800C-NIR View data

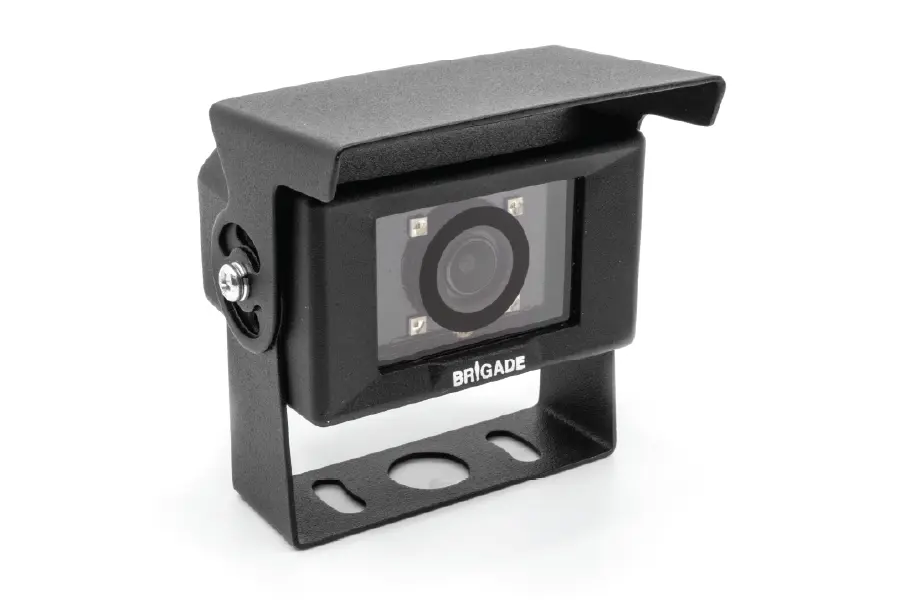

SELECT HD

backeye®360 kit with 4 cameras, ecu and a monitor

HD

IP69K

AHD Camera

PAL Models

Model

Part Number

VBV-7100C: (1080p) 5466
VBV-7190C: No audio (1080p) 5470
NTSC Models

Model

Part Number

VBV-7101C: (1080p) 5467
VBV-7191C: No audio (1080p) 5471

Model

Part Number

VBV-7101C: (1080p) 5467
VBV-7191C: No audio (1080p) 5471



  • High definition (1080p)
  • Viewing angle (HxVxD): 110° x 60° x 127°
  • IP69K
  • Size (WxHxD): 81 x 77 x 70mm
  • 3 year warranty
Features
  • 4 high-power Infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Microphone
  • Mirror view
  • Backlight compensation
  • Automatic white balance
  • Sony CMOS 1/3”& Nextchip ISP
  • TV System: AHD 1.0 (1080p)
  • TV Lines: 800
Power
  • Power consumption: 3 Watts
  • Current: 0.2 Amps
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +80°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
Product Data
Model Product Data
VBV-7100C View data
VBV-7101C View data
VBV-7190C View data
VBV-7191C View data
Features
  • 4 high-power Infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Microphone
  • Mirror view
  • Backlight compensation
  • Automatic white balance
  • Sony CMOS 1/3”& Nextchip ISP
  • TV System: AHD 1.0 (1080p)
  • TV Lines: 800
Power
  • Power consumption: 3 Watts
  • Current: 0.2 Amps
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +80°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
Product Data
Model Product Data
VBV-7101C View data
VBV-7191C View data

AI

backeye®360 kit with 4 cameras, ecu and a monitor

HD

IP69K

AI Camera

Front-facing: Normal View

Model

Part Number

VBV-2220C AI D04 7321
Rear: Mirror View

Model

Part Number

VBV2230C AI-D04 7396



  • 12-24Vdc
  • Camera Viewing angles:
    Horizontal 52°
    Vertical: 30°
  • AI Detection range:
    Front: Covers Class 6 area
    Rear: Up to 11m (dependent on camera mounting height)
  • IP69K
  • Camera Size (WxHxD): 97.5×75.3×72
  • 2 years warranty

Features
  • High Definition AHD 1080P
  • Recognizes and alerts the driver to people in the front and rear blind-spot
  • Detected people are shown in coloured boxes overlayed onto the camera image
  • Image processing and detected-person overlay directly from the camera unit
  • Plug-and-play: The AI camera connects directly to the Brigade monitor and or optional internal buzzer or external alarm
  • Brigade Select range connectors
  • Compatible with all Brigade HD monitors and MDR recorders
  • Alarm trigger output: 12V
Specifications
  • 260mA @12V, 140mA @24V Imaging
  • Operating Voltage: 12-24V
  • TV system: 25fps
  • CMOS 1/2.9” 2M Pixel sensor
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +75°C
  • IP30 ECU
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
  • ISO 20653:2006
  • ISO 13766-1:2018
Where to mount: Front

Viewing angle 52°(H), vertical 63°(V) typical installation for the front camera.

Where to mount: Rear

Viewing angle 129°(H), vertical 70°(V) typical installation for the rear camera. The camera installation minimum height is recommended to be 1m.

Product Data
Model Product Data
VBV-2220C AI-D04 View data
VBV-2230C AI-D04 View data

CMS Detection

AI Camera Detection

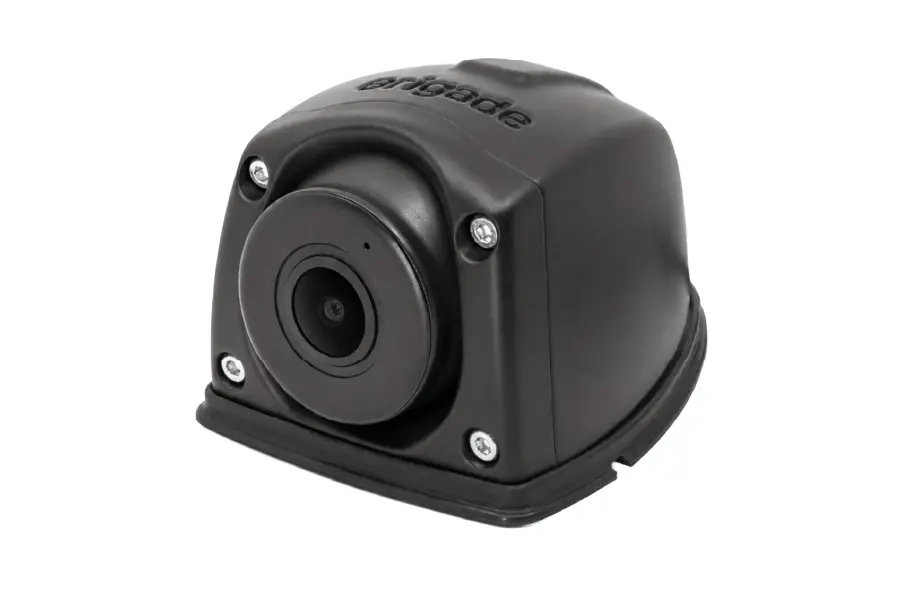

Side Cameras

SELECT HD

backeye®360 kit with 4 cameras, ecu and a monitor

HD

IP69K

AHD Eyeball Camera

PAL Models

Model

Part Number

VBV-3100C: Mirror view (1080p) 7143
VBV-3120C: Normal view (1080p) 7145
NTSC Models

Model

Part Number

VBV-3101C: Mirror view (1080p) 7144
VBV-3121C: Normal view (1080p) 7146

Model

Part Number

VBV-3101C: Mirror view (1080p) 7144
VBV-3121C: Normal view (1080p) 7146
  • High definition (1080p)
  • Flush mount
  • Viewing angle (HxVxD): 130 x 70 x 151°
  • IP69K
  • Size (WxHxD): 57 x 42 x 70mm
  • 3 year warranty
Features
  • 5 high power infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Lens swivel adjustment: 26° (Top) x 4° (Bottom) x 4° (Left) x 4° (Right)
  • Lens rotation adjustment: ±180°
  • Microphone
  • Backlight compensation
  • Automatic white balance
  • 1/3” CMOS
  • TV System: AHD 2.0 (1080p)
  • TV lines: 900
Power
  • Power consumption: 1.6 Watts
  • Current consumption: 0.112 Amps
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +70°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
Product Data
Model Product Data
VBV-3101C View data
VBV-3101C View data
VBV-3120C View data
VBV-3121C View data
Features
  • 5 high power infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Lens swivel adjustment: 26° (Top) x 4° (Bottom) x 4° (Left) x 4° (Right)
  • Lens rotation adjustment: ±180°
  • Microphone
  • Backlight compensation
  • Automatic white balance
  • 1/3” CMOS
  • TV System: AHD 2.0 (1080p)
  • TV lines: 900
Power
  • Power consumption: 1.6 Watts
  • Current consumption: 0.112 Amps
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +70°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
Product Data
Model Product Data
VBV-3101C View data
VBV-3121C View data

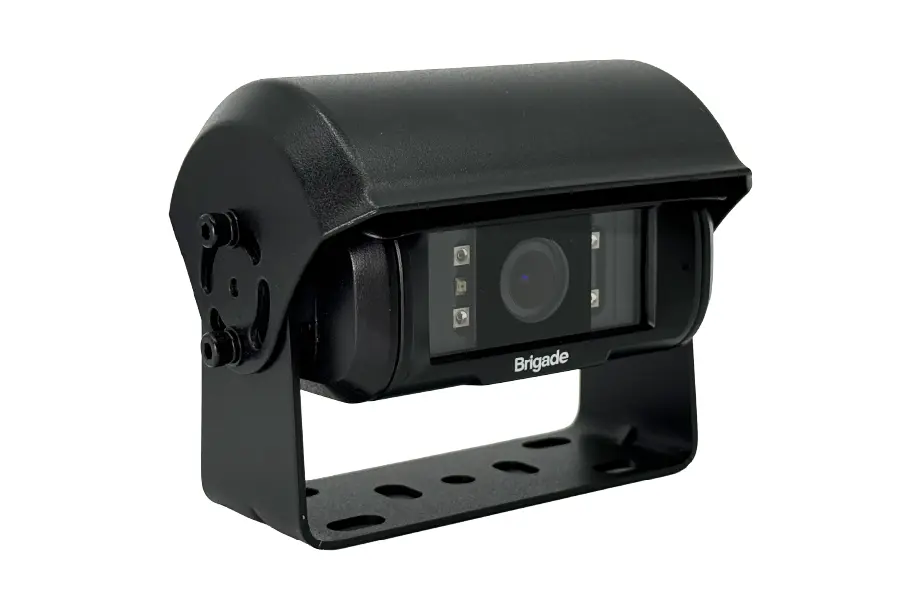

Shutter Cameras

ELITE

backeye®360 kit with 4 cameras, ecu and a monitor

WDR

IP69K

IP68

WDR Shutter Camera

Model

Part Number

BE-810C 1242
  • Viewing angle (HxVxD): 103 x 71 x 134°
  • IP68 / IP69K
  • Size (WxHxD): 123 x 86 x 80mm
  • 5 year warranty
Features
  • Wide Dynamic Range for improved detail in shadows and highlights
  • 5 Infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Automatic shutter
  • Heater
  • Microphone
  • Mirror / Normal view
  • Backlight compensation
  • Automatic white balance
  • Sony CMOS sensor
  • TV System: PAL
  • TV Lines: 450
Power
  • Power consumption: 5.4 Watts
  • Current: 0.45 Amps
Durability & Standards
  • Mechanical vibration: 8.5G
  • Mechanical shock: 51G
  • Operating temperature: -40 to +70°C
  • CE Marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
  • ISO 13766-1:2018
Product Data
Model Product Data
BE-810C View data

SELECT

backeye®360 kit with 4 cameras, ecu and a monitor

IP69K

IP68

Shutter Camera

Model

Part Number

VBV-710C 2808C
  • Viewing angle (HxVxD): 98 x 73 x 108°
  • IP68 / IP69K
  • Size (WxHxD): 122 x 85 x 82mm
  • 3 year warranty
Features
  • 4 high-power Infrared LEDs for ultra-low light performance
  • Day / Night sensor
  • Automatic Shutter
  • Heater
  • Microphone
  • Mirror / Normal view
  • Backlight compensation
  • Automatic white balance
  • 1/3″ Sharp CCD
  • TV System: PAL
  • TV Lines: 580
Power
  • Max Power consumption: 6 Watts
  • Max Current: 0.5 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock: 50G
  • Operating temperature: -30 to +70°C
  • CE Marked
  • E-Marked: UNECE R10 compliant
Product Data
Model Product Data
VBV-710C View data

Dome Cameras

SELECT HD

backeye®360 kit with 4 cameras, ecu and a monitor

HD

IP68

AHD Dome Camera

PAL Models

Model

Part Number

MD-60: (720p) 5737
MD-60(SW): Superwide view angle (720p) 5688
MD-60(W): Wide view angle (720p) 5696
NTSC Models

Model

Part Number

MD-61: (720p) 5738
MD-61(SW): Superwide view angle (720p) 5690
MD-61(W): Wide view angle (720p) 5698

Model

Part Number

MD-61: (720p) 5738
MD-61(SW): Superwide view angle (720p) 5690
MD-61(W): Wide view angle (720p) 5698
  • High definition (720p)
  • Viewing angle (HxVxD)
    68° x 38° x 80°
    (SW) 150° x 85° x 180°
    (W) 93° x 51° x 110°
  • IP68
  • Size (Diameter x H): 76 x 59.5 mm
  • 3 year warranty
Features
  • Dome camera with 150° movement range in all directions
  • Can be used internally or externally
  • Mirror / Normal view
  • Backlight compensation
  • Automatic white balance
  • CMOS – 1/3” ON-Semi ISP – Nextchip
  • TV System: AHD 1.0 (720p)
  • TV Lines: 900
  • TV Lines: 600 (SW & W)
Power
  • Power consumption: 1 Watt
  • Current: 0.57 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock 51G
  • Operating temperature: -30 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
Product Data
Models Product Data
MD-60 View data
MD-61 View data
MD-60(SW) View data
MD-61(SW) View data
MD-60(W) View data
MD-61(W) View data
Features
  • Dome camera with 150° movement range in all directions
  • Can be used internally or externally
  • Mirror / Normal view
  • Backlight compensation
  • Automatic white balance
  • CMOS – 1/3” ON-Semi ISP – Nextchip
  • TV System: AHD 1.0 (720p)
  • TV Lines: 900
  • TV Lines: 600 (SW & W)
Power
  • Power consumption: 1 Watt
  • Current: 0.57 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock 51G
  • Operating temperature: -30 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC Approved
  • IC Approved
Product Data
Models Product Data
MD-61 View data
MD-61(SW) View data
MD-61(W) View data

Mini and Cylinder Cameras

SELECT HD

backeye®360 kit with 4 cameras, ecu and a monitor

HD

IP30

AHD Mini Camera

PAL Models

Model

Part Number

DMC-1035: 720p

5721
NTSC Models

Model

Part Number

DMC-1031: 720p 5719

Model

Part Number

DMC-1031: 720p 5719
  • High definition (720p)
  • Internal use
  • Viewing angle (HxVxD): 68 x 38 x 80°
  • IP30
  • Size (WxHxD): 43 x 45 x 37.5mm
  • 3 year warranty
Features
  • Mirror / Normal view
  • Backlight compensation
  • Automatic white balance
  • CMOS – 1/3” ON-Semi ISP – Nextchip
  • TV System: AHD 1.0 (720p)
  • TV Lines: 900
Power
  • Power consumption: 1.0 Watt
  • Current: 0.55 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
Product Data
Model Product Data
DMC-1035 View data
DMC-1031 View data
Features
  • Mirror / Normal view
  • Backlight compensation
  • Automatic white balance
  • CMOS – 1/3” ON-Semi ISP – Nextchip
  • TV System: AHD 1.0 (720p)
  • TV Lines: 900
Power
  • Power consumption: 1.0 Watt
  • Current: 0.55 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock: 51G
  • Operating temperature: -30 to +85°C
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
  • IC approved
Product Data
Model Product Data
DMC-1031 View data

SELECT

backeye®360 kit with 4 cameras, ecu and a monitor

IP69K

IP68

Cylinder Camera

PAL Models

Model

Part Number

VBV-485C 2199
NTSC Models

Model

Part Number

VBV-481C 2843

Model

Part Number

VBV-481C 2843
  • Viewing angle (HxVxD):
    91 x 77 x 123° PAL
    96 x 71 x 126° NTSC
  • IP68 / IP69K
  • Size (Diameter x Length): 35 x 50mm
  • 3 year warranty
  • Viewing angle (HxVxD): 96 x 71 x 126°
  • IP68 / IP69K
  • Size (Diameter x Length): 35 x 50mm
  • 3 year warranty
Features
  • 9 LEDs for ultra-low light performance
  • Day / Night sensor
  • Mirror view
  • Backlight compensation
  • Automatic white balance
  • 1/3″ Sharp CCD
  • TV Lines: 680 PAL / 800 NTSC
Power
  • Power consumption: 1.9 Watts
  • Current: 0.2 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock: 50G
  • Operating temperature: -30 to +70°C
  • E-Marked: UNECE R10 compliant
  • CE marked
  • FCC approved VBV-481C only
  • IC approved VBV-481C only
Product Data
Model Product Data
VBV-485C View data
VBV-481C View data
Features
  • 9 LEDs for ultra-low light performance
  • Day / Night sensor
  • Mirror view
  • Backlight compensation
  • Automatic white balance
  • 1/3″ Sharp CCD
  • TV Lines: 680 PAL / 800 NTSC
Power
  • Power consumption: 1.9 Watts
  • Current: 0.2 Amps
Durability & Standards
  • Mechanical vibration: 10G
  • Mechanical shock: 50G
  • Operating temperature: -30 to +70°C
  • E-Marked: UNECE R10 compliant
  • CE marked
  • FCC approved VBV-481C only
  • IC approved VBV-481C only
Product Data
Model Product Data
VBV-481C View data

360° Vehicle Camera Systems

360° Vehicle Camera Systems are intelligent camera monitor products designed to assist low-speed maneuverability by providing the driver with a real-time surround view of the vehicle in a single image. Presenting all-round visibility in one image saves the driver or operator having to process information from several mirrors or monitors in quick succession, making it easier to spot and assess possible hazards.

a close-up of an artificial intelligent camera

AI Cameras

Using Artificial Intelligence, these cameras detect and recognize pedestrians within the pre-defined detection zone and reliably warn the driver visually and/or audibly before a possible collision occurs. Image processing is built-in to the camera, meaning no other hardware is required. The operating system used in the cameras is ‘trained’ to recognize people based on algorithms.

Cameras

Product Resources

Technical Support

Need technical support with a Brigade product or service? Visit the Product Support Area for product data, software downloads, and FAQs.

Contact Brigade

Would you like to make an enquiry for Brigade’s products? Please use one of the following options below.

Case Studies

Bluewater Recycling Association

Bluewater Recycling Association

Explore how Bluewater Recycling Association enhanced their operational safety with Brigade Electronics’ advanced safety systems. Read the full case study here.

Read More
FERCAM Logistics&Transport:

FERCAM Logistics&Transport:

Discover how Brigade Electronics partnered with Fercam Logistics to elevate safety standards in logistics operations. Explore our case study to uncover innovative solutions tailored to enhance visibility, efficiency, and overall safety in transportation and logistics.

Read More
