Why Use Dashcams?
Incidents involving commercial vehicles are becoming more frequent with insurance claims being time-consuming issues for both drivers and fleet managers.
A lack of solid evidence can often mean companies automatically accept liability with false claims, crash-for-cash and shrinkage now costing businesses millions each year.
Keeping your Dashcam and footage safe
Equipped with high-definition video capture and multiple recording modes, the front-facing recorder stores footage onto a micro SD card for ease of playback via our PC viewer. With the optional addition of a reversing or infrared LED internal camera, a Brigade dash cam is invaluable in the event of an incident.
All of Brigade’s Dashcams include a GPS antenna which provides a variety of data. Details such as speed, time of an incident, the severity of impact, a precise location and route identification are all able to be obtained when recovering footage.
Brigade’s Dashcam has been designed with a supercapacitor that automatically provides backup power in the event of power being disconnected. This ensures no data is lost and recordings are safely stored. Brigade Dashcams also have optional accessories to ensure the safety of the camera and its footage. Our locking box and key can help to prevent theft of the Dashcam as well as stop the product from being tampered with.
Dashcams
HD
FHD Dashcam Recorder
Model |
Part Number |
Region |
| DC-101-000: Stand Alone Dashcam | 6290 | UK |
| DC-101-001: Stand Alone Dashcam | 6560 | USA |
| DC-101-003: Stand Alone Dashcam | 7030 | Canada |
- High definition (1080p)
- 12-24Vdc
- In-built camera
- 1 video output
- Fast, easily downloadable recordings and data
- Size (WxHxD): 78 x 34.6 x 31.5mm
- 1 year warranty
Contents
- 1x Dashcam Recorder
- 1x GPS Antenna
- 1x 3m Hardwire cable
- 1x Mounting Bracket, adhesive pads and clips
- 1x 16Gb Micro SD card
- 1x Micro SD to SD adapter
- 1x Quick start guide
Features
- 1080p High definition video capture

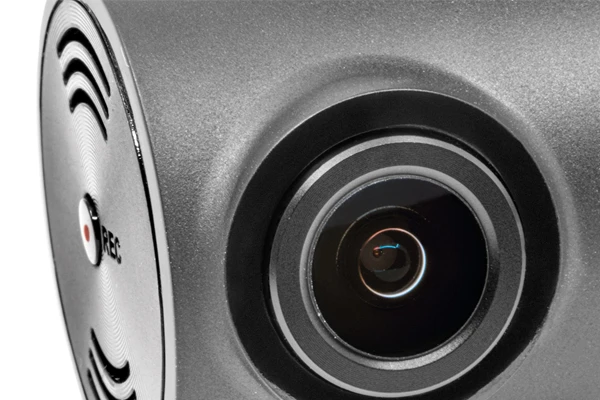

- Wide-angle camera lens 140°
- Wide Dynamic Range for improved detail in shadows and highlights
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Continuous recording with automatic overwriting of oldest data
- Audio
- External GPS receiver
- FAT (File Allocation Table) system eliminates the need for manual formatting of video files
- Front Vehicle departure warning
- 4 recording modes:
- Continuous – Records in 1min segments
- Incident – Records 10 seconds before and after an incident
- Manual – Records 10 seconds before and 50 seconds after manually starting recording
- Parking mode – Requires hard wiring
Picture Quality
- Sensor: 2.1 M Pixel 1/2.7” CMOS
- Video resolution: FHD 1920 x 1080
- MP4 image compression
- Fast frame rate, 30 frames per second
Durability & Standards
- Operating temperature: -10 to +60°C
- CE marked
Product Data
| Data | Product Data |
| DC-101 | View data |
HD
AHD Dashcam Recorder
Model |
Part Number |
Region |
| DC-102-RVC: Dashcam and rear-view camera | 6395 | UK |
| DC-102-RVC-001: Dashcam and rear-view camera | 7024 | USA |
| DC-102-RVC-003: Dashcam and rear-view camera | 7026 | Canada |
- High definition (720p)
- 12-24Vdc
- In-built camera
- 1 external camera input
- 1 video output
- Fast, easily downloadable recordings and data
- Dash Cam Size (WxHxD): 78 x 34.6 x 31.5mm
- Rear-view Camera size (WxHxD): 61 x 30.5 x 25mm
- 1 year warranty
Contents
- 1x Dashcam Recorder
- 1x Rear-view camera & 6m camera cable
- 1x GPS Antenna
- 1x 3m Hardwire cable
- 1x Mounting Bracket, adhesive pads and clips
- 1 x 32Gb Micro SD card
- 1x Micro SD to SD adapter
- 1x Quick start guide
Features
- 1080p High definition video capture
- Wide-angle camera lens 140°
- Wide Dynamic Range for improved detail in shadows and highlights
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Continuous recording with automatic overwriting of oldest data
- Audio
- External GPS receiver
- FAT (File Allocation Table) system eliminates the need for manual formatting of video files
- 4 recording modes:
- Continuous – Records in 1min segments
- Incident – Records 10 seconds before and after an incident
- Manual – Records 10 seconds before and 50 seconds after manually starting recording
- Parking mode – Requires hard wiring
- Adjustable camera (rear-view camera only)
Picture Quality
- Sensor: 2.1 M Pixel 1/2.7” CMOS
- Dash Cam video resolution:
FHD 1920 x 1080 - Rear-view camera video resolution:
HD 1280×720 - MP4 image compression
- Fast frame rate, 30 frames per second
Durability & Standards
- Operating temperature: -10 to +60°C
- CE marked
Product Data
| Data | Product Data |
| DC-102-RVC | View data |
HD
AHD Dashcam Recorder
Model |
Part Number |
Region |
| DC-102-IRC: Dashcam and internal Infrared LED camera | 6396 | UK |
| DC-102-IRC-001: Dashcam and internal Infrared LED camera | 7027 | USA |
| DC-102-IRC-003: Dashcam and internal Infrared LED camera | 7029 | Canada |
- High definition (720p)
- 12-24Vdc
- In-built camera
- 1 external camera input
- 1 video output
- Fast, easily downloadable recordings and data
- Dash Cam Size (WxHxD): 78 x 34.6 x 31.5mm
- Infrared Camera size: (WxHxD) 61 x 30.5 x 25mm
- 1 year warranty
Contents
- 1x Dashcam Recorder
- 1x Infrared LED Camera & 0.5m camera cable
- 1x GPS Antenna
- 1x 3m Hardwire cable
- 1x Mounting Bracket, adhesive pads and clips
- 1x 64Gb Micro SD card
- 1x Micro SD to SD adapter
- 1x Quick start guide
Features
- 1080p High definition video capture
- Wide-angle camera lens 140°
- Wide Dynamic Range for improved detail in shadows and highlights
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Continuous recording with automatic overwriting of oldest data
- Audio
- External GPS receiver
- FAT (File Allocation Table) system eliminates the need for manual formatting of video files
- 4 recording modes:
- Continuous – Records in 1min segments
- Incident – Records 10 seconds before and after an incident
- Manual – Records 10 seconds before and 50 seconds after manually starting recording
- Parking mode – Requires hard wiring
- Infrared LEDs for ultra-low light performance (Infrared camera only)
- Adjustable camera angle (Infrared camera only)
Picture Quality
- Sensor: 2.1 M Pixel 1/2.7” CMOS
- Dash Cam video resolution:
FHD 1920 x 1080 - Infrared camera video resolution:
HD 1280×720 - MP4 image compression
- Fast frame rate, 30 frames per second
Durability & Standards
- Operating temperature: -10 to +60°C
- CE marked
Product Data
| Data | Product Data |
| DC-102-IRC | View data |
The Features of
Dashcams
High Definition
Wide-angle HD cameras improve the ability to recognise faces and registration numbers
Location and Speed
Location and speed data via Brigade PC viewer
Multiple Recording
Multiple Recording Options
Software
Easy-to-use PC software for downloading and viewing footage
Dashcam Recording Options
Activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
Whilst parked the Dashcam will automatically record anything that triggers the incident and motion system.
Using the built-in G sensor, this mode records footage before and after a collision.
