Brigade Electronics

Front Dash Cam

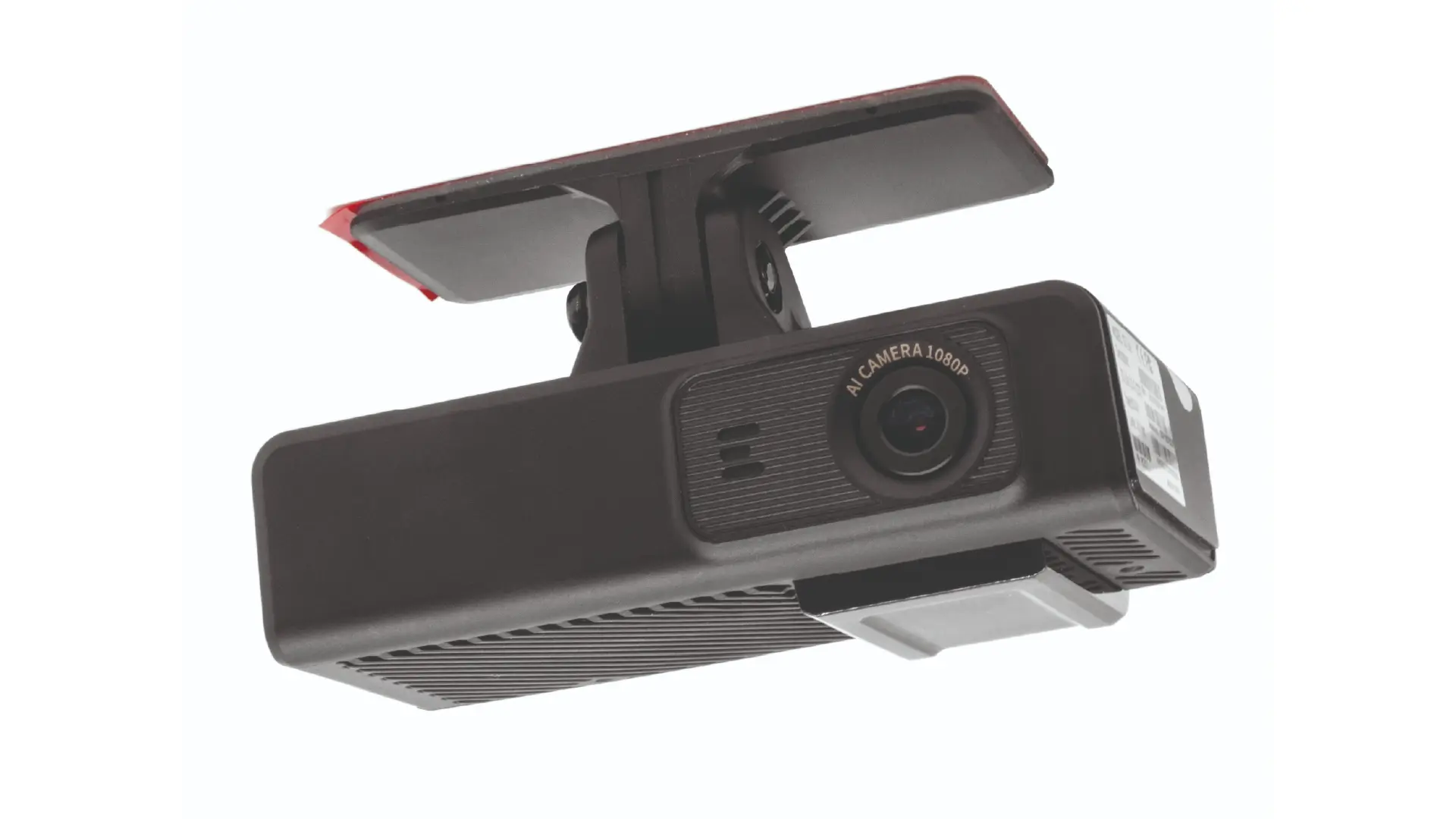

Single-Lens LCV Dashcam
The Single-Lens LCV Dashcam is a front dash cam providing a clear view of the road ahead, helping fleet operators capture incidents and improve vehicle safety. Built-in AI safety alerts and telematics integration provide greater visibility and protection for drivers, vehicles and your business.
Speak to our teamProduct Resources
Single-Lens LCV Dashcam

Models

  • Single-Lens LCV Dashcam (C6 Lite 2.0S)
    Part Number: 8207
Product Resources

Specification Overview

  • Forward facing camera
  • Telematics integration via Haloniq
  • 4G Connection via Brigade’s Telematics services
  • Fast, easily downloadable recordings and data
  • Size (WxHxD): 116.5 x 79.2 x 67mm
  • 1-year warranty
Features
  • 106° camera lens
  • Built-in WiFi and 4G communication module
  • Individual channel configurations for recording resolution, frame rate and quality
  • Continuous recording with automatic overwriting of oldest data
  • Supports 2 channel recording (additional camera and cable required)
  • Built-in 6-axis G-Sensor for harsh acceleration, deceleration, cornering and incident detection
  • Supports up to 2 x 512GB storage capacity
  • Sleep mode and remote wake up
  • Audio
  • Built-in GPS receiver
  • Built-in ADAS function:
    • Lane Departure Warning (LDW)
    • Forward Collision Warning (FCW)
    • Headway Monitoring Warning (HMW)
  • 3 recording modes:
    • Continuous: Records in 1min segments
    • Timer: Records to schedule accurate to the second
    • Alarm:
      • Pre-alarm from 1-to 60 minutes
      • Post-alarm from 1-30 minutes
Contents
  • 1x Dashcam Recorder
  • 1x 64Gb Micro SD card
  • 1x Power lead
  • 1x Mounting Bracket
  • 1x Extension cable
Picture Quality
  • 2 M Pixel 1/2.9” CMOS camera sensor
  • 1920 x 1080p HD video capture
  • 25 frames per second
Power
  • Power consumption: 7 Watts
Durability & Standards
  • Operating temperature: -40 to +70°C (-40 to +158°F)
  • CE marked
  • FCC approved
  • E-marked: UNECE R10 compliant
Note: In order to provide full functionality, a telematics monthly subscription is required. Not available in all regions.

Product Resources

LCV Dashcam (C6 Lite 2.0)

Product Data

Model

Part Number

Product Data
Dual-Lens LCV Dashcam (C6 Lite 2.0) 8209  View data
Single-Lens LCV Dashcam (C6 Lite 2.0S) 8207 View data
Product Data

Dual-Lens LCV Dashcam (C6 Lite 2.0) (8209)

Single-Lens LCV Dashcam (C6 Lite 2.0S) (8207)

Manuals

User Manual

Product Card
English
English - American
English - Canadian

Dual-Lens LCV Dashcam

Single-Lens LCV Dashcam
