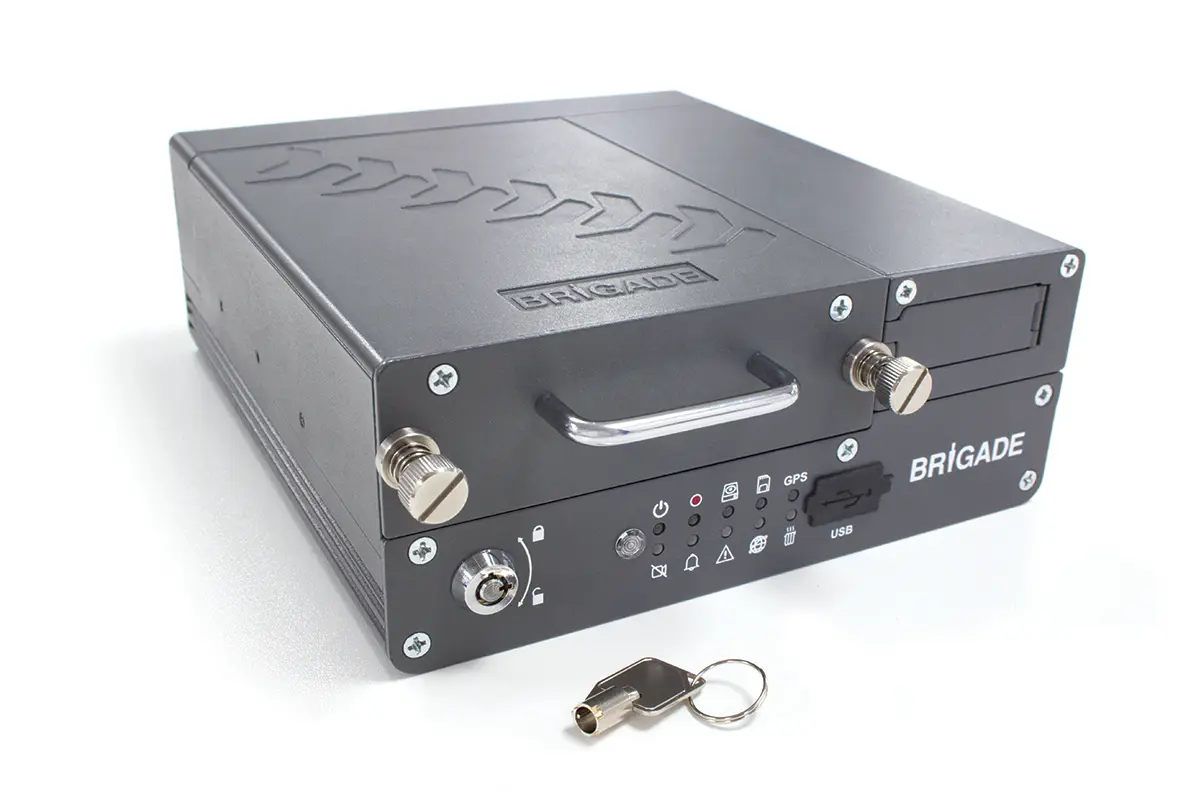

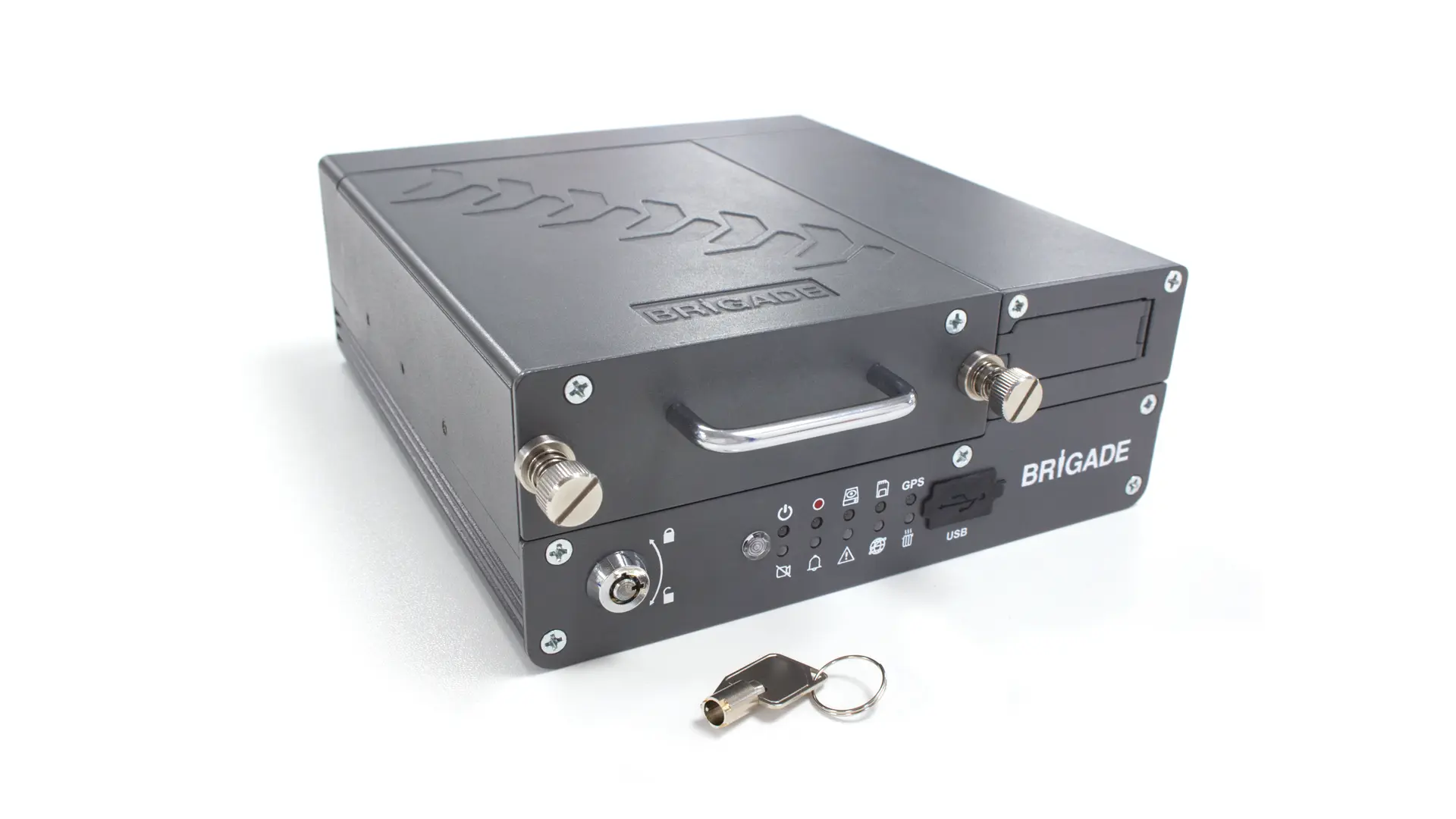

8 Channel DVR
MDR-5088 channel mobile digital recorder available with 1TB hard drive or 2TB solid-state drive. Models are available with Wi-Fi and/or 4G connectivity.
Product ResourcesSpeak to our team
Specification Overview
- 9-32Vdc
- 8 channels
- 8 camera inputs – supports AHD cameras
- Size (WxHxD): 224 x 85 x 221mm
- 8 trigger/alarm inputs
- Lockable and interchangeable Solid-State Drive Unit
- Fast, easily downloadable recordings and data
- 3 year warranty
Features
- Remotely access MDR units using wireless (WiFi models only) and/or Mobile network (4G models only)
- Mobile apps for remote view (WiFi/4G models only)
- Geo-fencing (WiFi/4G models only)
- Mobile Standards: 2G/3G/4G
- Audio (cameras must have microphones)
- Robust aluminum housing
- Anti-vibration mounting allows for installation at any angle
- Built-in GPS
- Internal G-sensor and built-in buzzer
- Recordings saved to hard disk (protected by non-visible digital watermark) and in-built Mirror recording onto 64Gb SD card
- Recording modes: normal, alarm and timer (all watermarked)
- Configurable alarm trigger settings
(speed, G-force, motion detection, video loss, voltage) - Record images prior to alarm activation and after the vehicle is switched off
- MDR-Dashboard (full player) and MDR Player (portable) with Google and MS Bing maps (English only)
- Search by date, time or triggered events
- Multi-level GDPR-compliant password protected access
- Hard drive unit directly pluggable to PC via USB port
- 8 x trigger Inputs, 2x trigger outputs and 1x12V power output
- Built-in HDD heater
- MDR Control using a USB Mouse or optional IR remote control
- USB 3.0 connection
- TV System: PAL/NTSC/AHD
- Compatible with Brigade’s vehicle CCTV camera monitor systems, IP cameras and Backeye®360 systems
Contents
- Mobile Digital Recorder with hard disk caddy unit
- Wired Mouse
- 64Gb industrial grade Class 10 SD card
- Input / Output Cable
- Power Cable
- GPS Antenna
- 4G Antenna (G and GW models)
- Wi-Fi Antenna (W and GW models)
- USB A to B Cable (3.0)
- Security Key
- Bracket and Fixings
Image and Audio Quality
- High quality H.264 image compression
- ADPCM – audio compression
- Choice of 8 low to high resolution settings
- Record at between 1 and 25 frames per second, per channel
Power
- Max power consumption: 80 Watts
- Current: 6.6 Amps
Durability & Standards
- Mechanical vibration: 1G
- Mechanical shock: 51G
- SSD vibration: 2.2G
- Operating temperature: -40 to +70°C
- E-Marked: UNECE R10 compliant
- CE marked
- FCC approved
- IC approved
- RoHS2 Compliant
Models
Standard Models
- MDR-508-1-G2-SSD: 8 channel 1TB solid-state drive recorder
Part Number: 6427 - MDR-508-2-G2-SSD: 8 channel 2TB solid-state drive recorder
Part Number: 6437
4G Models
- MDR-508G-1-G2-SSD: 8 channel 1TB solid-state drive recorder with 4G
Part Number: 6428 - MDR-508G-2-G2-SSD: 8 channel 2TB solid-state drive recorder with 4G
Part Number: 6438
WiFi and 4G Models
- MDR-508GW-1-G2-SSD: 8 channel 1TB solid-state drive recorder with WiFi and 4G
Part Number: 6429 - MDR-508GW-2-G2-SSD: 8 channel 2TB solid-state drive recorder with WiFi and 4G
Part Number: 6439
Optional Extra
- IP-EM4: Expansion Module which adds 4 additional IP channels to the MDR-508
Part Number: 5860 - IP-EM8: Expansion Module which adds 8 additional IP channels to the MDR-508
Part Number: 5861
