IP Rating Explained
What Is an IP Rating?
An IP rating (Ingress Protection rating) is an internationally recognised standard that indicates how well an electrical product is protected against the ingress of dust, dirt and water.
Developed by the International Electrotechnical Commission (IEC) and defined under EN 60529, the IP rating system helps users understand how suitable a product is for different operating environments.
For vehicle safety systems, cameras, monitors, sensors and other electronics are often exposed to rain, dust, mud, pressure washing and harsh working conditions. Choosing equipment with the correct IP rating helps ensure reliable performance and long service life.
What Do the IP Numbers Mean?
An IP rating consists of two digits:
IP69K (for example)
- First digit: Protection against solid objects and dust
- Second digit: Protection against water and moisture
The higher the number, the greater the level of protection.
Beskyttelse mod indtrængen
Solids Protection
Liquids Protection
Supplementary Letter
"K" represents protection against high-pressure, high-temperature wash-down applications.
First Digit: Protection Against Solids
Second Digit: Protection Against Liquids

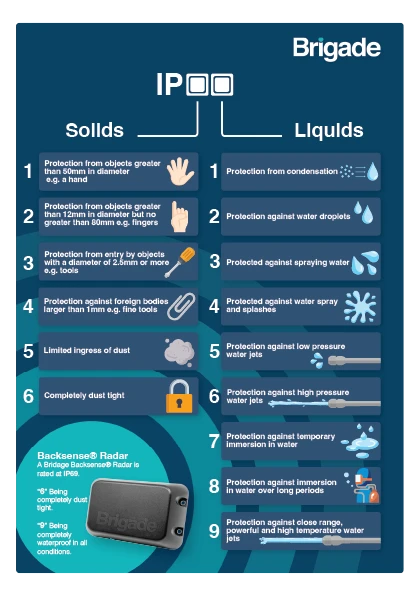

Diagram over IP-klassificering
When comparing products, an IP rating chart provides a quick reference for understanding the level of protection offered against dust and water.
For demanding industries such as construction, mining, waste management and agriculture, products with IP67, IP68 or IP69K ratings are often preferred due to their ability to withstand challenging environmental conditions.
 |
Beskyttelse mod genstande, der er større end 50 mm i diameter, f.eks. en hånd |
 |
Beskyttelse mod kondens |  |
 |
Beskyttelse mod genstande, der er større end 12 mm i diameter, men ikke større end 80 mm, f.eks. fingre |  |
Beskyttelse mod vanddråber |  |
 |
Beskyttelse mod indtrængen af genstande med en diameter på 2,5 mm eller mere, f.eks. værktøj |  |
Beskyttet mod vandsprøjt |  |
 |
Beskyttelse mod fremmedlegemer større end 1 mm, f.eks. fint værktøj |  |
Beskyttet mod vandsprøjt og stænk |  |
 |
Begrænset indtrængen af støv |  |
Beskyttelse mod vandstråler med lavt tryk |  |
 |
Helt støvtæt |  |
Beskyttelse mod højtryksvandstråler |  |
 |
Beskyttelse mod midlertidig nedsænkning i vand |  |
||
 |
Beskyttelse mod nedsænkning i vand i lange perioder |  |
||
 |
Beskyttelse mod kraftige vandstråler på tæt hold og med høj temperatur |  |
What Is IP69K?
IP69K is one of the highest protection ratings available for commercial vehicle electronics.
Products with an IP69K rating are:
- Completely dust-tight (IP6X)
- Protected against high-pressure, high-temperature water jets (IPX9K)
- Suitable for harsh outdoor environments
- Ideal for vehicles and machinery that are regularly pressure washed
Many Brigade cameras are rated IP69K, helping ensure dependable performance in demanding operating conditions. For example, Brigade’s AI cameras og Backeye®360 AI cameras are rated IP69K, making them suitable for commercial vehicles and mobile plant operating in challenging environments.
Choosing the Right IP Rating
When selecting vehicle safety equipment, consider:
- Exposure to dust, mud or debris
- Outdoor operation in all weather conditions
- Pressure washing requirements
- Operating environment and vehicle type
A higher IP rating generally provides greater protection and durability, helping maintain performance in challenging conditions.
