HGV Dashcam
Smarter Monitoring for HGV Fleets
The forward-facing camera can identify events such as a potential collision risk with the vehicle ahead or an unsignalled lane departure, then provide an audible alert to the driver. The driver-facing camera can identify behaviours such as mobile phone use, smoking and inattention.
For fleet managers, this connected dashcam sends event alerts and video to a remote dashboard in real time, helping teams review incidents, understand trends and support targeted driver training.
Brigade HGV Dashcam
This makes the system a practical HGV dashcam for operators looking to improve visibility, support driver development and strengthen fleet safety processes.

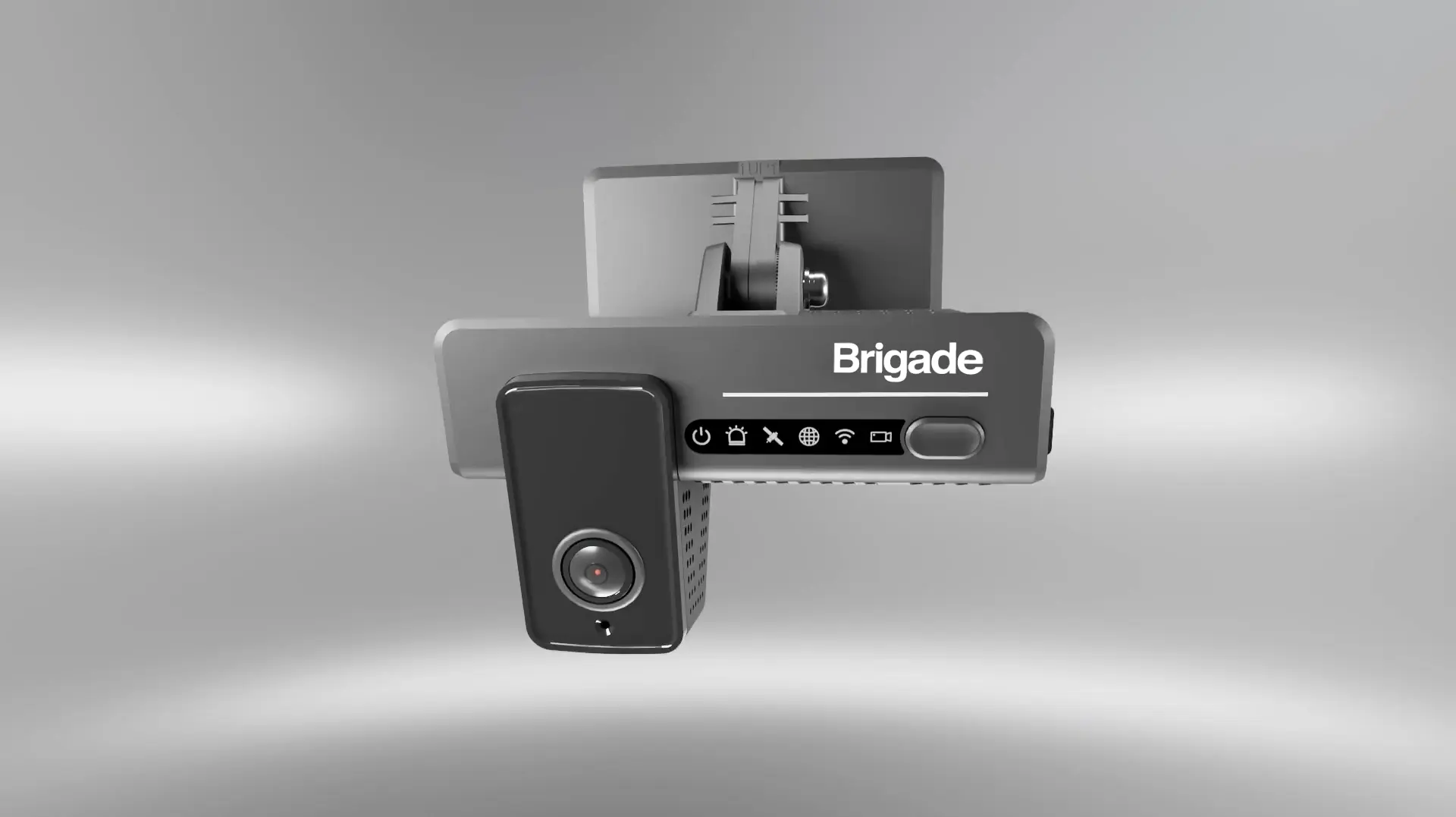

AI Connected Dashcam
Models
UK and Europe
- DC-204-AI (UK/EU)
Part Number: 7477
North America
- DC-204-AI (NA)
Part Number: 7487
Specification Overview
- 12-34Vdc
- Built-in ADAS and driver safety alerts
- Wide dynamic range for improved detail in shadow and highlights
- Supports 64GB SD card
- Built in WiFi and 4G communication module
- Bult-in GPS receiver
- Size (WxHxD): 113 x 88 x 68mm
- Front and driver-facing
- 1-year warranty
Features
- 170° driver facing camera lens
- 140° forwards facing camera lens
- Wide dynamic range for improved detail in shadow and highlights
- Built-in WiFi and 4G communication module
- Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
- Built in ADAS function:
- Lane Departure Warning (LDW)
- Forward Collision Warning (FCW)
- Headway Monitoring Warning (HMW)
- Digital Cockpit Safety (DCS) to detect unsafe driving behaviour
- Built in 6-axis G-Sensor for harsh acceleration, deceleration, cornering and incident detection
- Built-in GPS reciever
- 3 recording modes:
- Continuous – Records in 1min segments
- Timer- Records to schedule accurate to the second
- Alarm:
- Pre-alarm from 1 -to 60 minutes
- Post-alarm from 1 -to 30 minutes
- Individual channel configurations for recording resolution, frame rate and quality
- Supports up to 1TB storage capacity
- Audio
- Continuous recording with automatic overwriting of oldest data
- Supports CBVS monitors ( additional cable required)
Contents
- 1x Dashcam Recorder
- 2x 128Gb Micro SD card
- 1x Power lead
- 1x Mounting Bracket
- 1x Power box with cable
- 1xTorx driver
Picture Quality
- 5 M Pixel 1/2.7″ CMOS sensor forwards facing camera
- 2 M Pixel 12.9 CMOS sensor driver facing camera
- 1080p driver facing HD video capture
- 1920p forward facing HD video capture
- Fast frame rate, 30 frames per second
Power
- Power consumpton: 12.66 Watts
Durability & Standards
- Operating temperature: -40 to +70°C
- CE marked
- FCC approved
- IC approved
- E-marked: UNECE R10 compliant
Built-in ADAS Protection
The AI Connected HGV Dashcam comes with Advanced Driver Assistance Systems (ADAS) including:
Lane Departure Warning (LDW)
Headway Monitoring
Forward Collision Alerts
Connected Dashcam Access Through Brigade Telematics
This fully managed service means operators do not need to set up and maintain their own servers or manage SIMs and mobile data. The rolling subscription allows users to receive event alerts and video clips from the AI dashcam, live-stream in real time and download past footage and data.
Need Help Choosing Dashcams for Your Fleet?
Our team can help you find the right dashcam solution for your vehicles, from everyday incident recording to AI dashcam alerts, connected footage access and fleet visibility through Brigade Telematics.
Benefits
HGV Dashcam
Real-Time Driver Alerts
Audible AI alerts help drivers respond to supported high-risk events sooner.
Give Fleet Managers Faster Event Visibility
Connected alerts and video clips help managers review events remotely.
Clearer Driver Coaching
Road and in-cab footage supports focused driver training.
Easier Remote Access
Brigade Telematics enables live-streaming, downloads and managed connectivity.
Product Resources
AI Connected Dashcam
Product Data
Frequently Asked Questions
Can a dashcam alert a driver before a crash happens?
Yes, some AI dashcams can alert a driver to supported high-risk events before they develop further. Brigade’s AI Connected Dashcam uses a forward-facing camera to identify situations such as a potential collision risk with the vehicle ahead or an unsignalled lane departure, then provides an audible alert to the driver. This supports driver awareness and can help the driver take action sooner.
How do AI dashcams for trucks work?
AI dashcams use camera footage and artificial intelligence to identify selected road events and driver behaviours. In Brigade’s AI Connected Dashcam, the forward-facing camera monitors the road ahead and can provide alerts for supported ADAS events. The driver-facing camera monitors selected in-cab behaviours, such as mobile phone use, smoking and inattention. The system also records high-definition footage for later review.
How does a connected dashcam send alerts to a fleet manager?
A connected dashcam uses mobile connectivity to send event alerts and video clips to a remote dashboard. Brigade’s AI Connected Dashcam connects through 4G via Brigade Telematics, allowing fleet managers to receive alerts, view event video, live-stream in real time and download past footage and data.
What are the benefits of using AI cameras in my fleet?
AI cameras can support driver awareness, provide clearer incident footage and help fleet managers review driver behaviour more effectively. For HGV fleets, Brigade’s AI Connected Dashcam can help identify selected high-risk situations, send event notifications to a dashboard or app, support driver coaching and provide useful footage for training conversations.
What kind of driver behaviour can a smart dashcam detect?
A smart dashcam with a driver-facing camera can detect selected in-cab behaviours. Brigade’s AI Connected Dashcam can identify mobile phone use, smoking and inattention. It also includes an enhanced G-sensor for detecting harsh braking, harsh cornering and harsh acceleration events.
