AI Side Camera
The Brigade AI Side Camera combines high-quality side vision with AI Human Form Recognition to detect pedestrians, cyclists and other vulnerable road users in side blind spots. With configurable detection zones up to 15 metres and real-time visual and audible alerts, it helps drivers manoeuvre more safely in busy environments.
Speak to our teamProduct Resources
AI Side Camera with Human Form Recognition

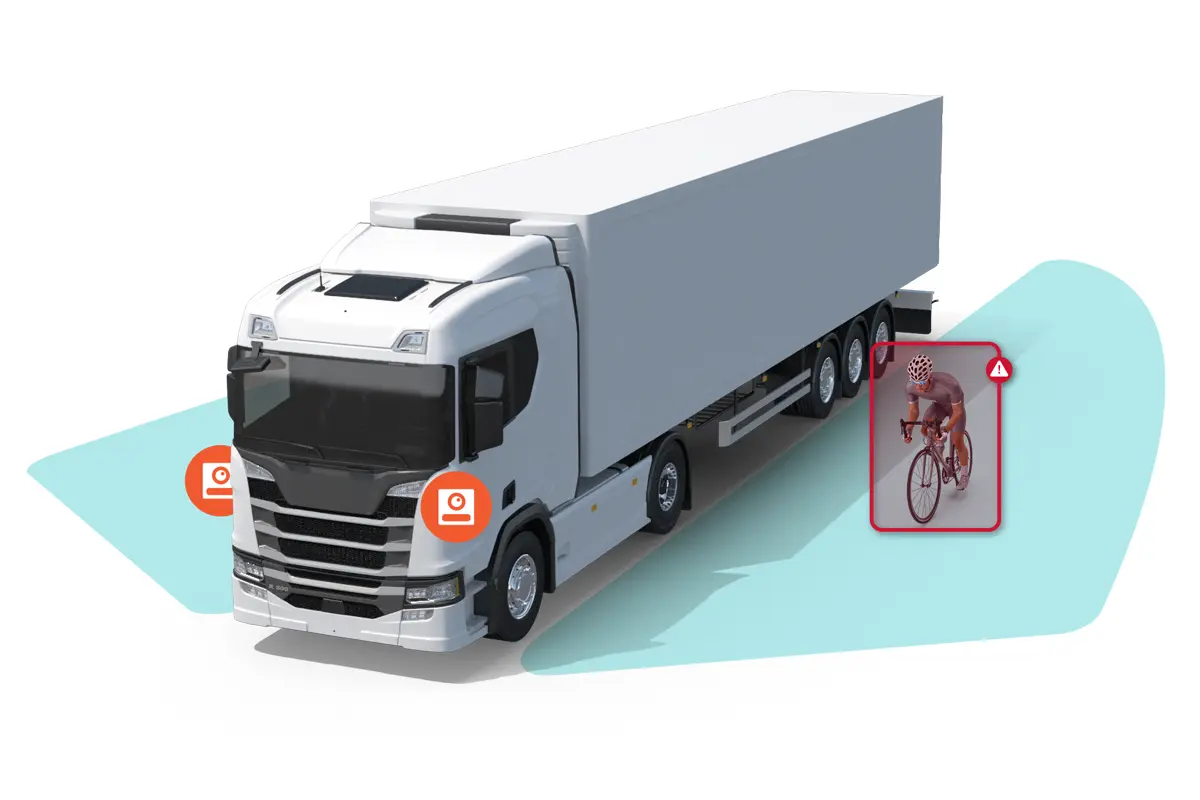

Side blind spots can conceal pedestrians, cyclists, workers and obstacles, making them one of the biggest visibility challenges for commercial vehicle drivers. The Brigade AI Side Camera combines a high-quality side view camera with intelligent Human Form Recognition (HFR) to detect vulnerable road users within configurable detection zones, providing timely visual and audible alerts alongside a clear live camera view.
Intelligent Side Blind Spot Detection for Safer Manoeuvring
Designed to integrate seamlessly with Brigade vehicle safety systems, it helps drivers improve awareness when turning, changing lanes and operating in busy urban environments, reducing the risk of vehicle damage, operational disruption and incidents.
Brigade AI Side View Camera
The Brigade AI Side Camera extends the Brigade AI camera range by bringing Human Form Recognition to blind spot monitoring. Designed for commercial vehicles operating in busy environments, it helps drivers identify vulnerable road users and obstacles alongside the vehicle through real-time AI Detection and immediate visual and audible alerts.
Powered by Brigade’s proven AI technology and engineered for seamless integration with Brigade safety systems, the AI Side Camera provides a flexible solution for fleets looking to improve driver awareness and enhance side blind spot protection.
Specification Overview
- 10V-32V
- 720P AHD
- TV Systems: 25fps/30fps configurable in WebUI
- Picture Elements: 1280 x 720P
- Size (WxHxD): 41.46 x 68.35 x 56.76mm
- Viewing Angle (HxVxD): 132° x 70° x 150°
- Length of Cable: 300mm, extension cables available
Contents
- 1 x VBV-3201C-AI (8156) Camera
Below included in camera box:
- 1 x VBV-22X0C-CA (S7346) Camera cable adaptor
- 1 x VBV-3201C-AI-QR (8330) QR link card
- 1 x VBV-3xC-FIX (5244) Fixing kit
Power
- Current Consumption: 92±8mA@12V
Durability & Standards
- Operating Temperature: -20° to +70°
- IP Rating: IP69K
- Vibration Resistance: 5.9G
- E-Mark – UN-ECE Regulation 10.06
- CE – EN IEC 61000-6-2:2019 / EN IEC 61000-6-3:2021
- UKCA – BS EN IEC 61000-6-3:2021 / BS EN IEC 61000-6-2:2019
- FCC – FCC Part 15B, Class B
- ICES – ICES-003, Class B
- REACH
- WEEE
Need Help Choosing a Camera System?
Our team can help you identify the best camera solution for your vehicles, operational requirements and visibility challenges.
Benefits
AI Side View Camera
AI Human Form Recognition
Detects pedestrians, cyclists, workers and obstacles in the vehicles side blind spot, providing intelligent alerts to help improve driver awareness during manoeuvres
Up to 15 Metres Configurable Detection Range
Configure detection zones up to 15 metres to suit your vehicle and application, ensuring monitoring is focused where it’s needed most
Visual & Audible Driver Alerts

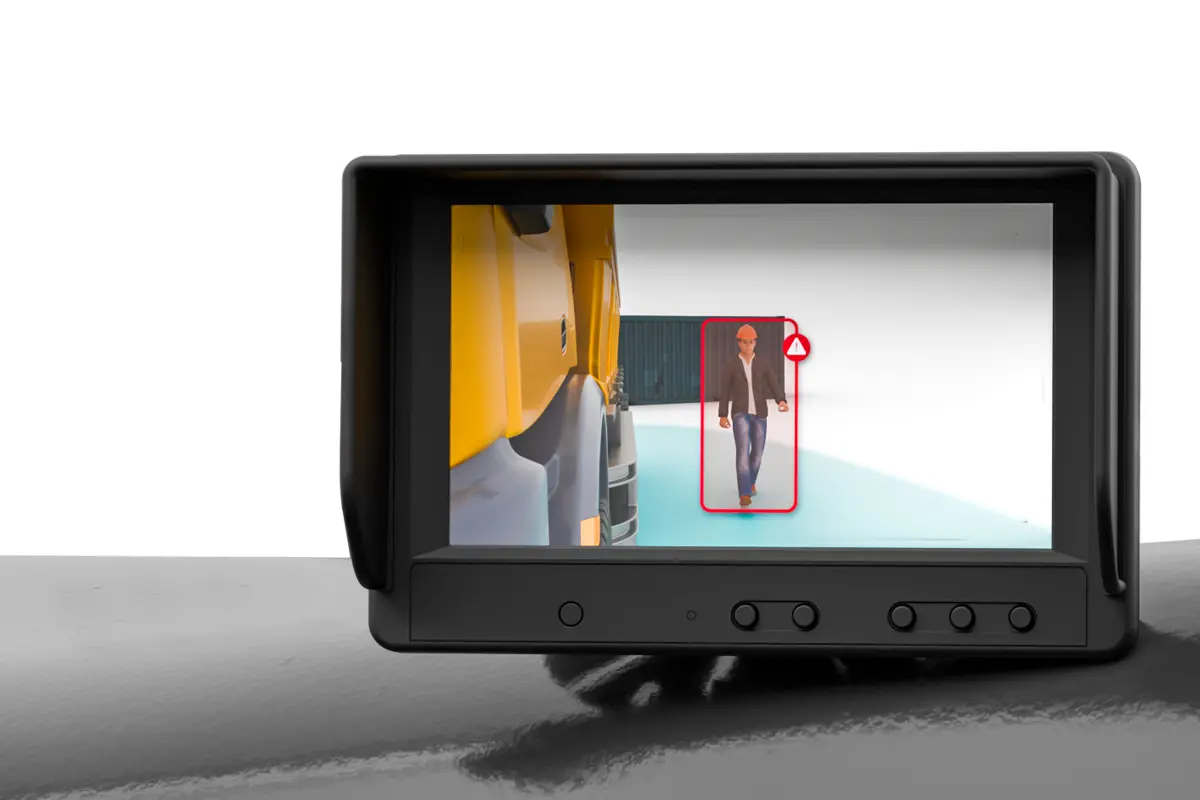

Provides immediate visual and audible alerts when a vulnerable road user enters the detection zone, supporting faster driver awareness
Flexible System Integration
Integrates seamlessly with Brigade vehicle safety systems using CAN, M12 and Zone connectivity options
Product Resources
Select AI Side Camera
Product Data
| Model | Part Number | Product Data |
| VBV-3201C-AI | 8156 | View data |
Product Data
Frequently Asked Questions
How do AI cameras reduce truck blind spots?
AI cameras help reduce truck blind spots by combining a live camera view with intelligent detection technology. The system can identify vulnerable road users, such as pedestrians and cyclists, within monitored areas and provide visual and audible alerts to improve driver awareness.
How does an AI blind spot detection system work?
An AI blind spot detection system uses a camera and artificial intelligence to analyse the area around the vehicle in real time. When a pedestrian, cyclist or other vulnerable road user enters a configured detection zone, the system generates alerts to help the driver respond appropriately.
What is the difference between a standard side camera and an AI side camera?
A regular side camera provides a live view of the vehicle’s blind spot area, allowing the driver to monitor the surroundings visually. An AI side camera adds intelligent detection capabilities that can recognise vulnerable road users and provide automatic alerts when they are detected.
How do AI cameras compare with radar for truck blind spot detection?
AI cameras provide both a live visual image and intelligent detection of vulnerable road users, helping drivers see and understand potential hazards. Radar systems detect objects using radio waves and can operate effectively in a range of environmental conditions. The most suitable solution depends on the vehicle application, operating environment and safety requirements.
