Reversing Sensor System

Backscan®

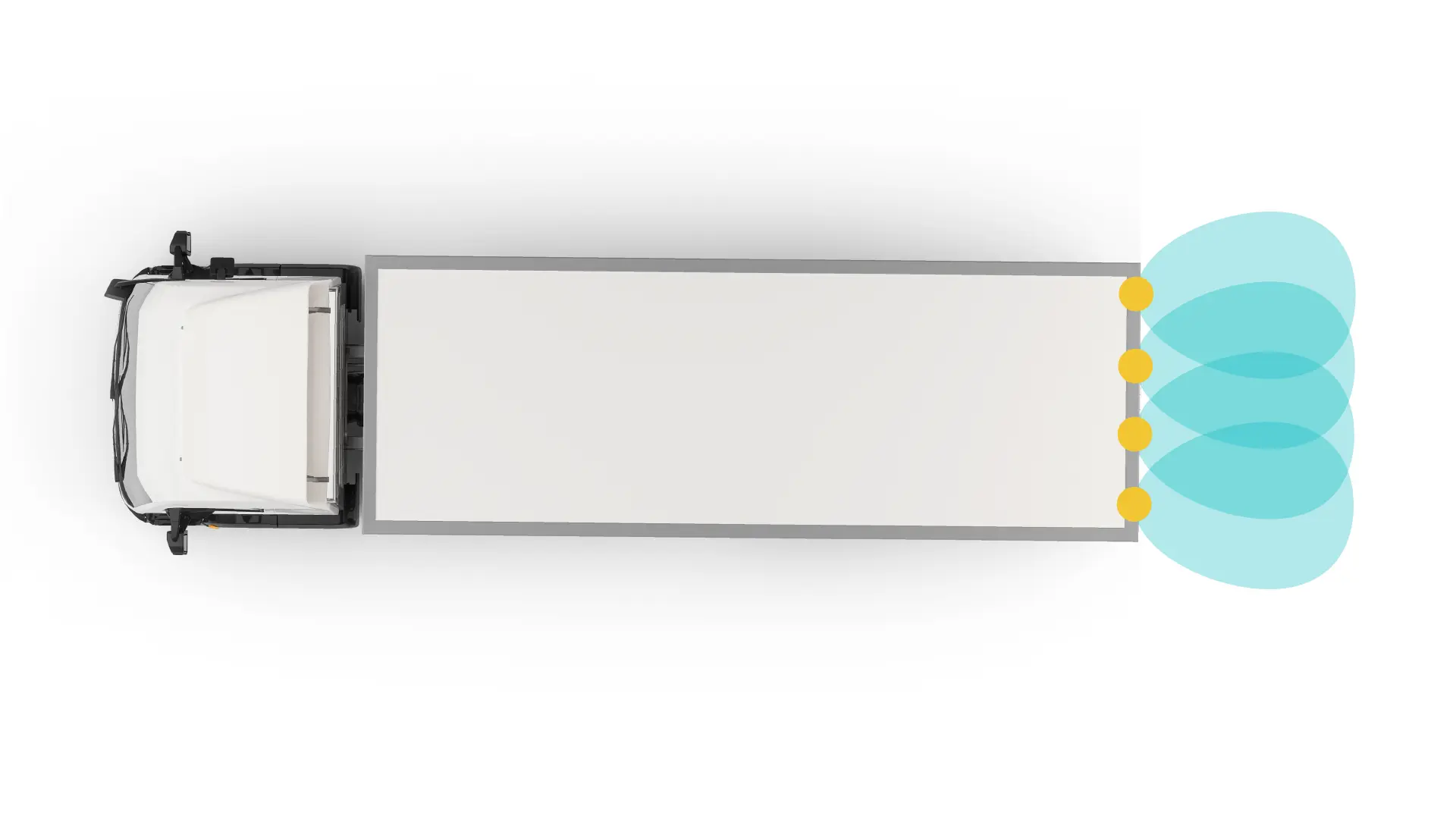

Backscan® is a commercial vehicle reversing sensor system that uses four ultrasonic sensors to detect obstacles behind the vehicle and provide clear audible and visual warnings.
Speak to our teamProduct Resources

Backscan® Ultrasonic Detection System

Backscan® is a reversing sensor system designed to help drivers detect obstacles behind the vehicle during reversing manoeuvres. Using four ultrasonic sensors, the system provides graduated audible and visual warnings, helping improve driver awareness and reduce the risk of collisions.

Ideal for commercial vehicles operating in busy depots, distribution centres, urban environments and confined spaces, Backscan® provides an additional layer of protection when reversing.

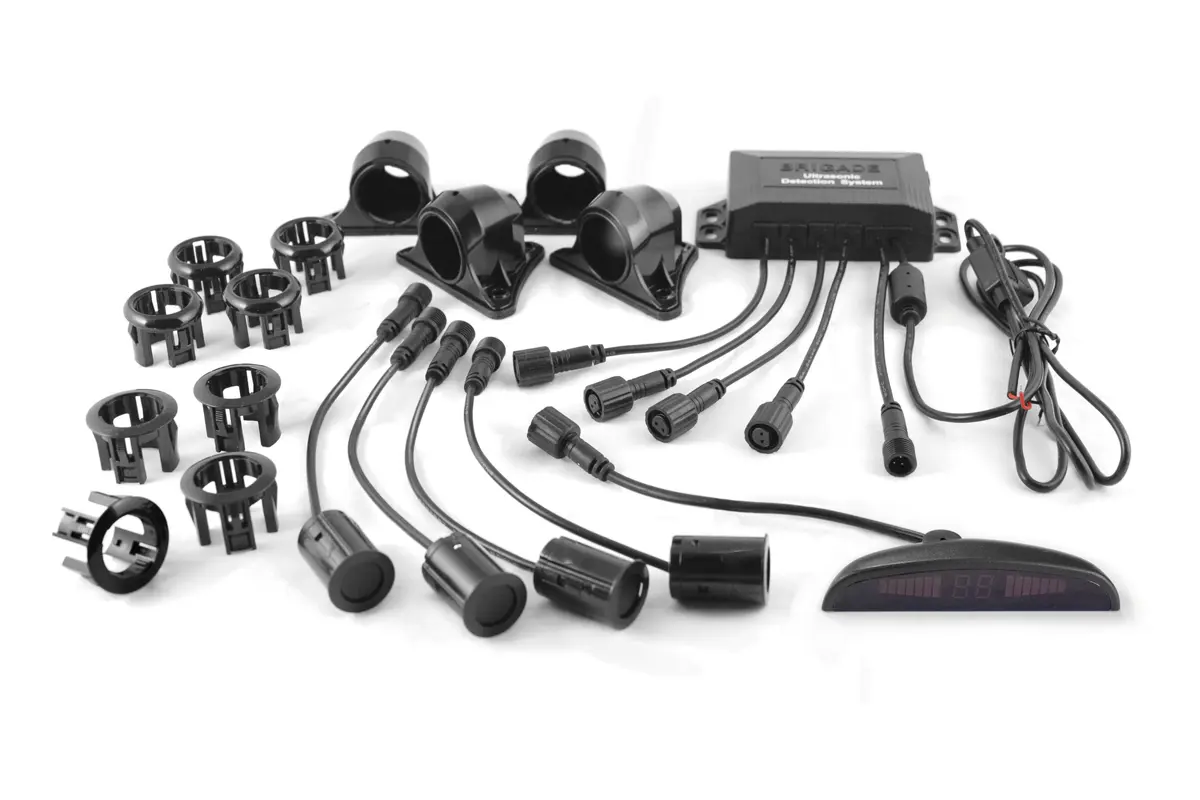

Brigade Backsense® ultrasonic 4 sensor system

Backscan® Ultrasonic Rear Reversing Detection Sensor System

Models

  • BS-4000W
    Part Number: 3744

Product Resources

Product Resources

Specification Overview

  • 4 ultrasonic sensors
  • 12-24Vdc
  • 2.5m detection range
  • Graduated visual and audible distance warning display
Features
  • Obstacles detected in under 200 milliseconds
  • Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
  • Self-diagnostic function
  • 1 x Trigger output
Contents
  • 4 x sensors
  • Visual and audible display
  • 4 x 0° flush mount fixings
  • 4 x 11° flush mount fixings
  • 4 x underslung fixings
  • Waterproof control box
  • 15m display cable
  • 4 x 2.5m sensor cables
Durability & Standards
  • Mechanical vibration: 5G
  • Mechanical shock: 10G
  • Operating temperature: -30 to +80ºC
  • Waterproof sensors to IP68
  • Waterproof control box to IP69K
  • CE marked
  • E-Marked: UNECE R10 compliant
  • FCC approved
Power
  • Power consumption: 2.4 Watts
  • Current: 200mA

Need Help Finding the Right Ultrasonic System?

Speak to our safety experts to see how a Ultrasonic Detection System can protect your drivers and fleet.
Speak to our team
^

Benefits

Reversing Sensor System

warning icon

Improved Reversing Safety

Provides early warning of obstacles behind the vehicle, helping drivers manoeuvre more safely in restricted areas.

Damage Icon

Reduced Vehicle Damage

Helps prevent costly impacts with walls, loading bays, bollards, parked vehicles and other fixed objects.

Driver Awareness Icon

Enhanced Driver Awareness

Graduated visual and audible warnings provide clear information about the distance between the vehicle and an obstacle.

Truck Icon

Suitable for Busy Working Environments

Ideal for vehicles operating in depots, warehouses, construction sites, urban streets and logistics facilities.

Product Resources

Backscan®

Product Data
Model Part Number Product Data
BS-4000W 3744 View data
Product Data

BS-4000W (3744)

Manuals

Installation Guide

Brigade Backsense® ultrasonic 4 sensor system

Frequently Asked Questions

What is a reversing sensor?

A reversing sensor is an obstacle detection system that uses ultrasonic technology to identify objects behind a vehicle and alert the driver during reversing manoeuvres.

How do reversing sensors work?

Reversing sensors emit ultrasonic waves and measure the time taken for the signal to return after hitting an object. The system then provides audible and visual warnings based on the distance detected.

What are the benefits of reversing sensors?

Reversing sensors help reduce collisions, prevent vehicle damage, improve driver awareness and support safer manoeuvring in confined spaces.

Are reversing sensors suitable for commercial vehicles?

Yes. Backscan® is specifically designed for commercial vehicles and can be fitted to trucks, vans, utility vehicles, municipal fleets and construction equipment.
