Front Sensor Detection
Frontscan®Frontscan® is a front sensor detection system that uses four ultrasonic sensors to identify pedestrians, cyclists and obstacles hidden within the vehicle's front blind spot.
Speak to our teamProduct Resources
Frontscan® Ultrasonic Detection System
Frontscan® is a front sensor detection system that helps drivers identify pedestrians, cyclists and obstacles located directly in front of the vehicle. Using four ultrasonic sensors, the system monitors the front blind spot and provides audible and visual warnings when hazards are detected.
Designed for commercial vehicles operating in busy urban environments and confined spaces, Frontscan® helps improve driver awareness and reduce the risk of low-speed collisions.
Frontscan® Ultrasonic Front Sensor Detection System
Models
- FS-4000W
Part Number: 3747
Specification Overview
- 4 ultrasonic sensors
- 12-24Vdc
- 2m/1m detection range
- Audible distance warning
- 3-year warranty
Features
- Obstacles detected in under 200 milliseconds
- Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
- Self-diagnostic function
- 1 x Trigger output

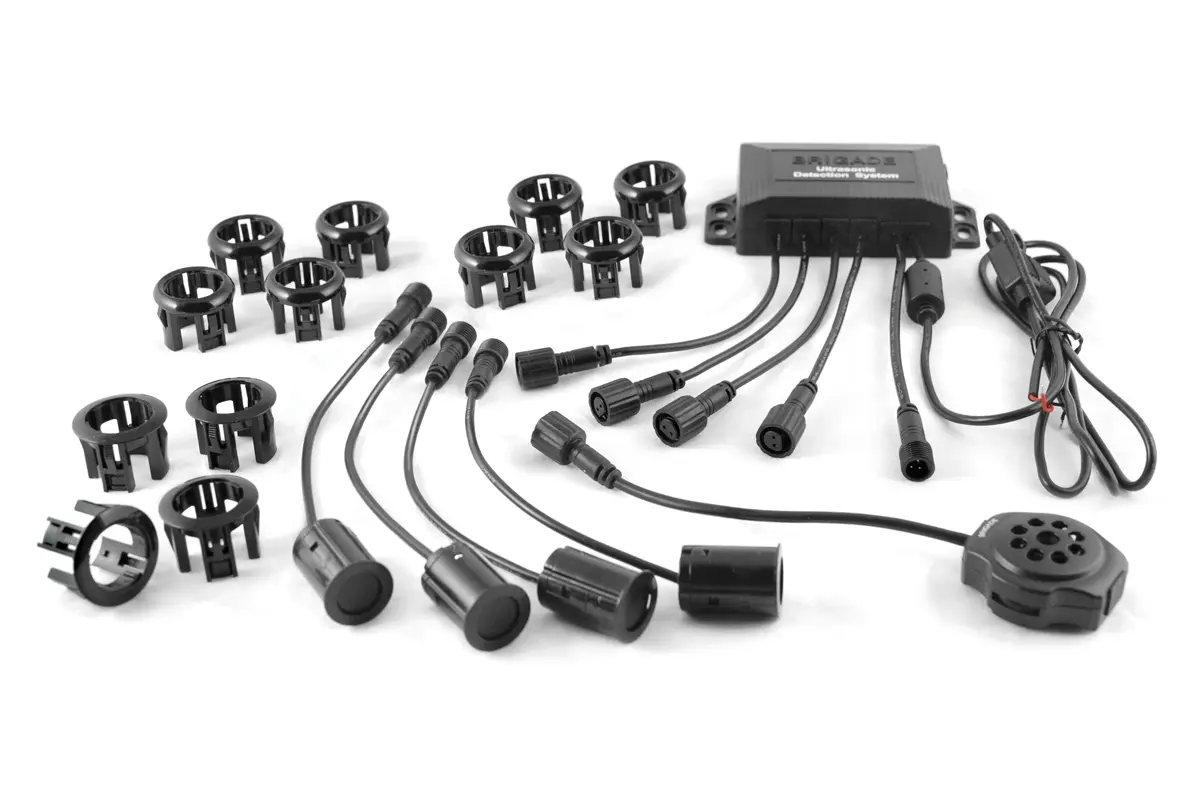

Contents
- 4 x sensors
- Buzzer
- 4 x 11° flush mount fixings
- 4 x 18° flush mount fixings
- Waterproof control box
- 2.5m buzzer cable
- 4 x 2.5m sensor cables
Durability & Standards
- Operating temperature: -30 to +80ºC
- Waterproof sensors to IP68
- Waterproof control box to IP69K
- CE marked
- E-Marked: UNECE R10 compliant
Power
- Power consumption: 2.4 Watts
- Current: 200mA
Need Help Finding the Right Ultrasonic System?
Speak to our safety experts to see how a Ultrasonic Detection System can protect your drivers and fleet.
Benefits

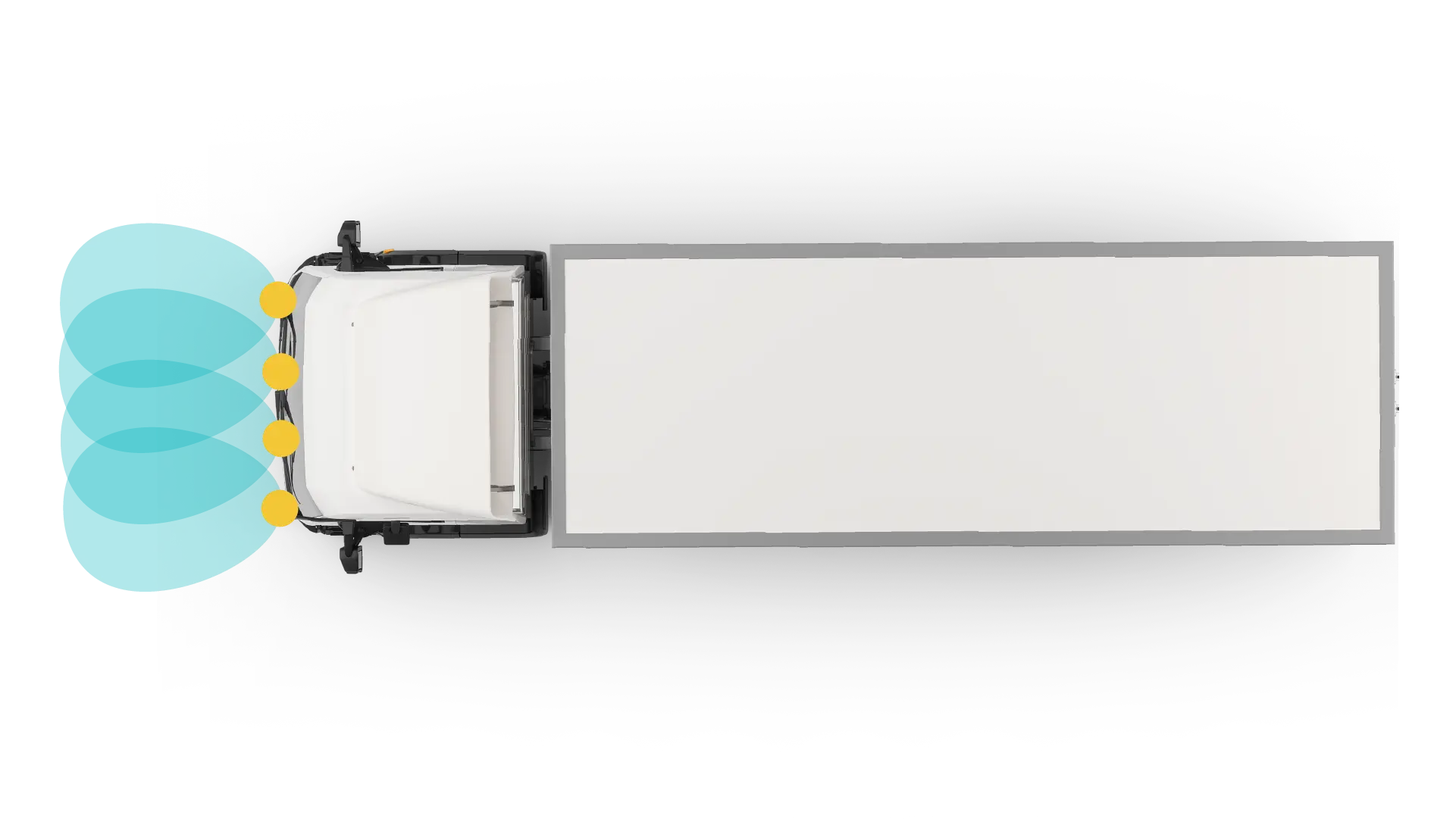

Front Corner Blind Spot Detection
Enhanced Front Blind Spot Protection
Detects pedestrians, cyclists and objects that may be hidden directly in front of the vehicle.
Improved Vulnerable Road User Safety
Helps drivers identify people operating close to the vehicle, particularly in congested urban environments.
Reduced Collision Risk
Provides early warnings that help prevent low-speed impacts during manoeuvring and stop-start traffic conditions.
Greater Driver Confidence
Supports safer vehicle operation by improving awareness of hazards within the front detection zone.
Product Resources
Frontscan®
Product Data
| Model | Part Number | Product Data |
| FS-4000W | 3747 | View data |
