Side Detection Sensor System
Sidescan®
Sidescan® Ultrasonic Detection System

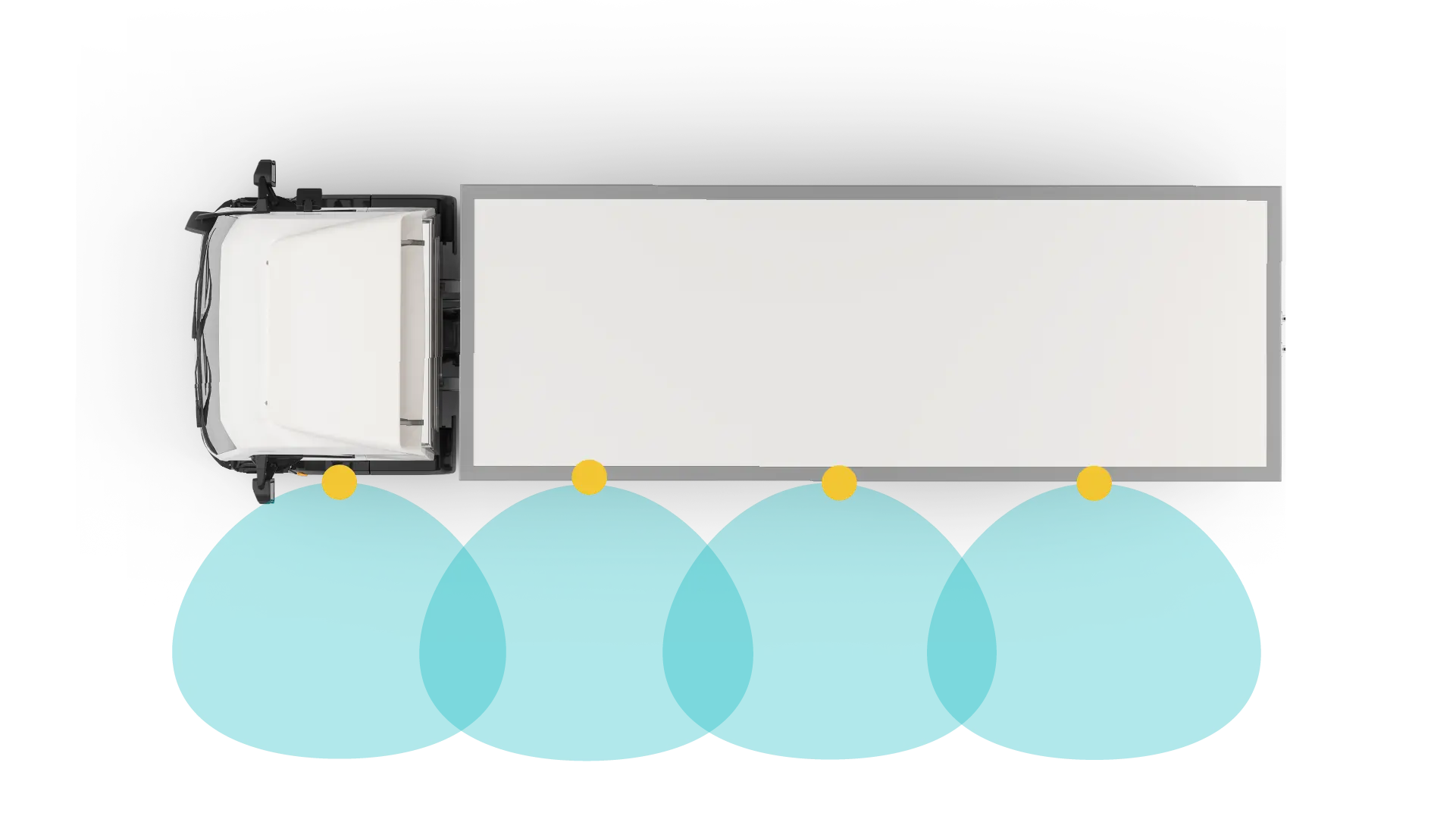

Sidescan® is a side detection sensor system designed to help drivers identify pedestrians, cyclists and obstacles within the vehicle’s nearside blind spot. Using four ultrasonic sensors, the system continuously monitors the area alongside the vehicle and provides audible and visual warnings when hazards are detected.
Ideal for urban environments and busy roads, Sidescan® helps improve driver awareness and reduce the risk of collisions with vulnerable road users during turning and low-speed manoeuvres.
Sidescan® Ultrasonic Side Detection Sensor System
Models
- SS-4100W
Part Number: 5257 - SS-4100W-000: Low speed trigger module and turn indicator sensor kit.
Part Number: 5257
Specification Overview
- 4 ultrasonic sensors
- 12-24Vdc
- 1m/1.5m detection range
- Audible distance warning
- 3-year warranty
Features
- Obstacles detected in under 200 milliseconds
- Buzzer with audible distance warning, LED & adjustable volume control
- Buzzer will silence after 4 seconds if there is no movement from the detected object or vehicle
- Environment Learning Mode prevents false alarms from ancillary equipment that intrudes in the first 100cm of the detection zone.
- Self-diagnostic function
Contents
- 4 x sensors
- Buzzer
- 4 x 0° flush mount fixings
- 4 x 11° flush mount fixings
- 4 x underslung fixings
- Waterproof control box
- 10m Buzzer cable
- 4 x 4.5m sensor cables
- 2 x 2.5m extension cables
Durability & Standards
- Mechanical vibration: 5G
- Mechanical shock: 10G
- Operating temperature: -30 to +80ºC
- Waterproof sensors to IP68
- Waterproof control box to IP69K
- CE marked
- E-Marked: UNECE R10 compliant
- FCC approved
Power
- Power consumption: 2.4 Watts
- Current: 200mA
Need Help Finding the Right Ultrasonic System?
Benefits
Side Detection Sensor System
Enhanced Nearside Blind Spot Protection
Detects pedestrians, cyclists and obstacles travelling alongside the vehicle in areas that may be difficult for drivers to see.
Improved Vulnerable Road User Safety
Provides greater awareness of cyclists and pedestrians operating close to the vehicle during urban driving and turning manoeuvres.
Reduced Collision Risk
Helps drivers identify hazards before turning or changing position, supporting safer vehicle operation.
Increased Driver Confidence
Delivers clear warnings that help drivers make informed decisions in busy traffic environments.
